Basics of Fuels and Advanced Combustion System for Boiler

Oxy-Fuel Combustion

• Principle:
  • In oxy-fuel combustion, the fuel is burned in pure oxygen or a mixture of oxygen and recirculated flue gases instead of air. This results in a flue gas stream that is primarily composed of CO2 and water vapor, making it easier to capture and store CO2 for carbon capture and storage (CCS).
• Benefits:
  • Higher Efficiency: The absence of nitrogen from the air reduces the formation of nitrogen oxides (NOx) and increases the flame temperature, leading to more efficient combustion.
  • Easier CO2 Capture: The high concentration of CO2 in the flue gas simplifies the capture process.
  • Lower Emissions: Reduced NOx emissions and potentially lower levels of other pollutants.
• Applications:
  • Used in power plants, industrial boilers, and processes where CO2 capture is essential.

Circulating Fluidized Bed Combustion (CFBC)

• Principle:
  • CFBC involves burning fuel in a bed of particles suspended by upward-flowing air (fluidization). The fuel particles and bed material (typically sand or ash) are continuously circulated through the combustion chamber and back to a cyclone separator to ensure complete combustion.
• Benefits:
  • Fuel Flexibility: Can burn a wide variety of fuels, including low-grade fuels, biomass, and waste materials.
  • Lower Combustion Temperatures: The lower operating temperature (800-900°C) reduces the formation of NOx and allows for in-situ capture of sulfur dioxide (SO2) by adding limestone to the bed.
  • Efficient Heat Transfer: The circulating particles provide efficient heat transfer, improving the overall efficiency of the boiler.
• Applications:
  • Widely used in power generation and industrial boilers, particularly where low-grade fuels are used.

Integrated Gasification Combined Cycle (IGCC)

• Principle:
  • IGCC technology involves gasifying solid fuels (like coal or biomass) to produce a synthetic gas (syngas) composed mainly of hydrogen and carbon monoxide. This syngas is then cleaned and burned in a gas turbine to generate electricity, with the exhaust heat used to produce steam for a steam turbine (combined cycle).
• Benefits:
  • High Efficiency: The combined cycle process enhances overall efficiency compared to conventional combustion methods.
  • Cleaner Emissions: Gasification allows for the removal of impurities like sulfur, mercury, and particulate matter before combustion, leading to cleaner emissions.
  • Carbon Capture: The concentrated CO2 stream from the gasification process is easier to capture.
• Applications:
  • Primarily used in power plants, especially where carbon capture and storage (CCS) is a requirement.

Supercritical and Ultra-Supercritical Combustion

• Principle:
  • Supercritical and ultra-supercritical boilers operate at pressures and temperatures above the critical point of water
    • supercritical: ~22.1 MPa and 374°C;
    • ultra-supercritical: above 25 MPa and 600-700°C).
  • This allows water to exist as a supercritical fluid with no distinct phase change from liquid to vapor.
• Benefits:
  • Higher Efficiency: The higher temperatures and pressures improve thermal efficiency, reducing fuel consumption and emissions.
  • Lower CO2 Emissions: The higher efficiency results in lower CO2 emissions per unit of electricity generated.
  • Advanced Materials: Use of advanced materials and design to withstand extreme conditions, ensuring longevity and reliability.
• Applications:
  • Used in modern power plants to maximize efficiency and reduce environmental impact.

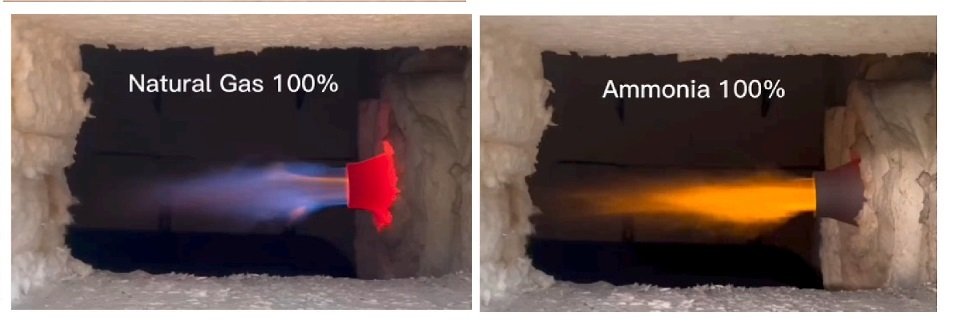

Low NOx Burners

• Principle:
  • Low NOx burners are designed to reduce the formation of nitrogen oxides (NOx) during combustion by controlling the combustion temperature, air-fuel mixing, and staging the combustion process.
• Benefits:
  • Reduced NOx Emissions: Achieves significant reductions in NOx emissions, which are major contributors to smog and acid rain.
  • Improved Combustion Control: Advanced designs optimize the combustion process for both efficiency and emissions control.
• Applications:
  • Widely used in industrial boilers, power plants, and other combustion processes where NOx emissions need to be minimized.

Staged Combustion (Overfire Air)

• Principle:
  • Staged combustion involves dividing the combustion process into multiple stages with controlled introduction of air.
  • Initially, the fuel is burned with less air (fuel-rich conditions) to minimize NOx formation, and then additional air (overfire air) is introduced in later stages to complete the combustion.
• Benefits:
  • NOx Reduction: By controlling the air supply, the formation of NOx is significantly reduced.
  • Flexible Implementation: Can be retrofitted to existing boilers to improve performance and reduce emissions.
• Applications:
  • Commonly used in power generation and industrial boilers to meet stringent NOx emission standards.

Chemical Looping Combustion (CLC)

• Principle:
  • In CLC, the combustion process is divided into two reactions in separate reactors. Metal oxides (oxygen carriers) are used to transfer oxygen from the air to the fuel. The fuel reacts with the metal oxide in a fuel reactor, producing CO2 and water vapor. The reduced metal oxide is then regenerated in an air reactor by reacting with air.
• Benefits:
  • Direct CO2 Capture: Since CO2 is not mixed with nitrogen from the air, it can be easily captured without the need for additional separation processes.
  • Lower NOx Formation: NOx formation is minimized because the combustion air and fuel do not directly mix.
• Applications:
  • Still in the research and pilot stages, but holds promise for future large-scale power plants and industrial applications.

Plasma-Assisted Combustion

• Principle:
  • Plasma-assisted combustion uses a plasma field (a highly energized state of matter) to enhance the combustion process. The plasma can be generated by an electric discharge and is used to ionize the air-fuel mixture, resulting in more efficient and stable combustion.
• Benefits:
  • Enhanced Ignition: Allows for more reliable ignition, especially in low-temperature conditions or with difficult-to-burn fuels.
  • Improved Combustion Stability: Stabilizes the combustion process, leading to higher efficiency and reduced emissions.
• Applications:
  • Potential applications include industrial boilers, power plants, and engines, especially for low-grade or alternative fuels.

Hybrid Combustion Systems

• Principle:
  • Hybrid combustion systems combine different combustion technologies to optimize performance. For example, combining fluidized bed combustion with gasification or integrating solar energy with conventional combustion processes.
• Benefits:
  • Fuel Flexibility: Can handle a wide range of fuels, including biomass, waste, and fossil fuels.
  • Enhanced Efficiency: Combining technologies can lead to higher overall efficiency and lower emissions.
• Applications:
  • Used in industrial processes and power generation where diverse fuel sources and high efficiency are desired.

CFD Modeling of advanced combustion system

• CFD  modeling of an advanced low NOx combustion system in a boiler involves simulating the combustion process to predict and optimize the performance of the system, particularly with respect to reducing nitrogen oxides (NOx) emissions.
• NOx is a significant pollutant formed during high-temperature combustion processes, and advanced combustion techniques aim to minimize its production. Here’s a breakdown of how CFD modeling is applied to such systems:

Understanding Low NOx Combustion Systems

• Low NOx Burners: These are specially designed burners that reduce NOx formation by controlling the air-fuel mixture and the combustion process. Techniques include staged combustion, flue gas recirculation, and the use of low excess air.
• Staged Combustion: Involves burning fuel in multiple stages to reduce peak temperatures and limit the availability of oxygen during the initial combustion phase, thus reducing NOx formation.
• Flue Gas Recirculation (FGR): Involves recirculating a portion of the flue gases back into the combustion chamber to lower the flame temperature and dilute oxygen, further reducing NOx.

Key Objectives of CFD Modeling

• Predict NOx Formation: The primary goal is to model the combustion process accurately enough to predict the formation of NOx under various operating conditions.
• Optimize Burner Design: CFD can be used to refine the design of low NOx burners to ensure optimal mixing of air and fuel, stable combustion, and minimal NOx production.
• Evaluate Temperature Distribution: Assessing the temperature profile within the combustion chamber helps in understanding hotspots that contribute to NOx formation.
• Study Air-Fuel Mixing: Effective mixing is crucial for complete combustion and minimizing emissions. CFD helps visualize and optimize the mixing process.
• Simulation of Turbulence and Flow Patterns: Understanding the turbulence and flow dynamics within the combustion chamber is critical for efficient combustion and low NOx emissions.

Steps in CFD Modeling of Low NOx Combustion System

1. Geometry Creation:
   • Modeling the Combustion Chamber: Start by creating a detailed 3D model of the combustion chamber, burners, and associated components. The geometry should include all relevant features like air inlets, fuel injectors, and burner nozzles.
2. Meshing:
   • Generating the Computational Grid: Create a computational mesh that divides the geometry into small control volumes. The quality and resolution of the mesh are critical for accurate simulations, particularly in regions with high gradients, such as near the burner and in the flame zone.
3. Defining Boundary Conditions:
   • Inlets and Outlets: Specify boundary conditions for air, fuel, and any recirculated flue gas entering the combustion chamber. Define outlet conditions for the flue gases.
   • Wall Conditions: Apply appropriate boundary conditions to the walls, such as adiabatic (no heat loss) or specified temperature, depending on the physical setup.
4. Selecting Physical Models:
   • Turbulence Models: Choose an appropriate turbulence model, such as the k-ε or k-ω models, to simulate the flow patterns within the combustion chamber. For more detailed studies, Large Eddy Simulation (LES) or Direct Numerical Simulation (DNS) can be used, although they are computationally expensive.
   • Combustion Models: Use a suitable combustion model, like the Eddy Dissipation Concept (EDC), Flamelet models, or Finite Rate Chemistry models, to simulate the chemical reactions and heat release in the combustion process.
   • NOx Formation Models: Incorporate a NOx formation model (such as the Zeldovich mechanism) to predict thermal NOx, prompt NOx, and fuel NOx production based on temperature and species concentration.
5. Simulation Setup:
   • Solver Settings: Set up the solver with appropriate time-stepping, convergence criteria, and discretization schemes. Transient simulations may be needed to capture dynamic effects in the combustion process.
   • Species Transport and Reactions: Define the transport of chemical species (O2, CO2, H2O, NOx, etc.) and their interactions during combustion. Include reactions that lead to the formation of NOx.
6. Running the Simulation:
   • Iterative Solution: Run the simulation, ensuring that the solution converges to a stable state. Monitor key parameters such as temperature distribution, NOx concentration, and velocity profiles.
7. Post-Processing and Analysis:
   • Temperature and Velocity Fields: Analyze the temperature and velocity fields to identify hot spots, flow recirculation zones, and areas of poor mixing.
   • NOx Distribution: Evaluate the distribution of NOx within the combustion chamber and at the flue gas outlet. Identify regions contributing most to NOx formation.
   • Optimization: Use the results to optimize burner design, air-fuel ratios, and other parameters to achieve the lowest possible NOx emissions while maintaining combustion efficiency.
8. Validation and Iteration:
   • Experimental Comparison: If possible, validate the CFD results against experimental data or real-world measurements from the boiler. Adjust the model as needed to improve accuracy.
   • Iterative Improvement: Refine the model and re-run simulations with adjusted parameters to further optimize the combustion system.

Challenges in Industrial Combustion Modeling

• Complex Chemistry: Accurately modeling the complex chemical reactions involved in combustion and NOx formation can be challenging and requires robust reaction mechanisms.
• Turbulence-Combustion Interaction: Capturing the interaction between turbulence and combustion is critical for accurate predictions but adds complexity to the simulations.
• Computational Resources: High-fidelity simulations, especially those using LES or DNS, require significant computational power and time.
• Model Validation: CFD models need to be validated against experimental data to ensure their reliability and accuracy in predicting real-world behavior.

5. Applications

• Power Plants: Optimizing large-scale boilers in power plants for low NOx emissions.
• Industrial Boilers: Improving the performance of industrial boilers used in various sectors, including chemical processing, manufacturing, and district heating.
• Retrofit Design: CFD can be used to design retrofit solutions for existing boilers to reduce NOx emissions without compromising efficiency.

Conclusion

• These advanced combustion technologies are part of the ongoing evolution in boiler design and operation, aimed at meeting the growing demand for energy efficiency, environmental sustainability, and regulatory compliance.
• CFD modeling of advanced low NOx combustion systems is a powerful tool that enables engineers to design and optimize boilers for better environmental performance while maintaining or improving efficiency.
• CFD provides detailed insights into the combustion process, allowing for targeted interventions to reduce emissions and improve system performance.
