Students Guide for Installation Popular CFD Software
To get Free CFD Software and user guide kindly click on the links
1) Commercial CFD Solvers without Automatic Meshing
How to Install ANSYS CFD Solvers
- There are CFD solvers which are widely used in both academia and industries
- Students can use up to maximum 500,000 cells for CFD simulations using ANSYS FLUENT
- They provide a free version for students
- Refer to the user guide for CFD modeling
- Check your system hardware before installing CFD analysis software
- Students can Tecplot for post-processing of CFD results. Tecplot has good control over streamlines and vectors.
Application and Modules:
- Geometry Tools: ANSYS Space claim, ANSYS Work Bench
- Meshing platform: ANSYS Mesher, ICEM CFD, FLUENT Mesher
- CFD Solver: FLUENT, CFX
- Post-processing: CFD- Post, ANSYS EnSight
Download the Latest ANSYS Students Version
Click here To Download the Latest ANSYS Student Version:
- ANSYS FLUENT 2023 R1 :
- It is valid till 1st March 2024
- Size of file around 10 GB Zipped files
- Zip in a separate folder and unzip
- Click on the set-up of the file.
- ANSYS will be automatically installed in C drive
- ANSYS FLUENT 2022 R2:
- it is valid till 31 July 2023
- To get download files, refer to the Prior Release Section
Requirement of your Laptop or PC for ANSYS FLUENT 2022
Operating Systems: Microsoft Windows 10, 64-bit
Minimum Hardware Requirements:
- Processor(s): Workstation class
- RAM: 4 GB
- Hard Drive space: 25 GB
- Installation in C Drive: C:/” drive present
- Graphics card and driver: Professional workstation class 3-D, Discrete Graphics card is recommended for larger end simulations
- OpenGL-capable
New Update in ANSYS FLUENT 2023 R1
- Direct ECAD workflow for PCB: New workflow for printed circuit board (PCB) that enables the import of an ECAD directly from the Fluent interface without the need to use additional products
- Full Release of Multi-GPU Solver: The multi-solver has added support for species transport, non-stiff reacting flows, enhanced LES
numerics, sliding mesh and compressible flows - Models for Hydrogen Value Chain: PEM and Alkaline electrolysis models for green hydrogen production and extended PEMFC and SOFC
Fuel Cells models for hydrogen consumption - Virtual Blade Model for Turbomachinery: A Virtual Blade Model (VBM) replaces 3D rotors with actuator disks by adding their effect using the source terms in the governing equations
- Modeling of High-speed Numerics in Aero Mode: Access High-Speed Numerics (HSN) within FluentAero Workspace with seamless setup and improved robustness and convergence for all flight regimes
- Embedded Parametric / Morphing in the car Model: A new workflow for parametric design optimization
and morphing embedded in the Fluent interface - Built-in Aero-Optical Workflow:
ANSYS User Guide
2) CFD Solvers with Automatic Meshing
- Star CCM+ and CONVERGE are also used as a popular CFD solver in many automotive industries
- They do not require a separate meshing platform. It directly generates dynamic grid adaptive mesh based on gradients of flow variables.
- Siemens provides free access for universities students and faculty to Simcentre STAR-CCM+
- Students can download Star CCM+ by clicking here: University: Star CCM+
- COMSOL has the Lattice Boltzmann method (LBM) in their solver
- Students or faculty can contact to get a trial version
- Students can download tutorials of CONVERGE
3) Open source CFD Solvers (Free Software)
- OpenFOAM is a popular open-source CFD software for both academia and industries
- This CFD solver has no licensing fee
- Download OpenFOAM CFD tools for Linux or Ubuntu
- For block meshing creates structures meshing. Refer to this for more details: blockMesh for Different Geometries
- Code Saturn is also a free and open-source CFD software
Application and Modules:
- Geometry Tools: OpenFOAM, SALOME, FreeCAD
- Meshing platform: blockMesh, SnapyHexMesh, cfMesh

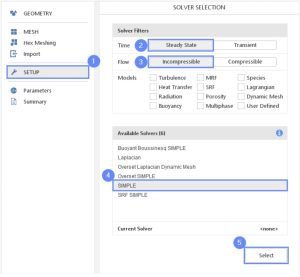

- CFD Solver: icoFOAM, simpleFOAM, interFOAM etc.

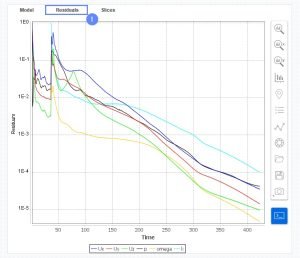

- Post-processing: ParaFoam, gnuPlot, foamtoTecplot
User Guide of Open Foam
3.1 How to Install Open FOAM in Windows
3.1 Install Ubuntu for Programming Environment
- The first step to installing Open FOAM, your computer must have a programming environment to run the C++ libraries of Open FOAM
- You can create it by installing Ubuntu either within windows 10 or a separate operating system
- Watch videos : click on the links
- Then download and install OpenFOAM after copying files in Ubuntu
3.2 Download and installation of Open FOAM Files
- Download OpenFOAM-v2012: OpenFOAM-v2012-windows10.tgz
- Start Bash on Ubuntu by typing bash in the search toolbar
- Click on the Desktop app Bash on Ubuntu on Windows
- In the bash-terminal,
- Copy “OpenFOAM-v2012-windows10.tgz ” from the Download folder to the local bash-environment by entering the following command:
cp -ar /mnt/c/Users/<USER>/Downloads/OpenFOAM-v2012-windows10.tgz
- Copy “OpenFOAM-v2012-windows10.tgz ” from the Download folder to the local bash-environment by entering the following command:
-
- You need to replace the string with your own user name while copying the file: here shown by the user pgh
- The final dot (.)need to specify the current location
- Untar the OpenFOAM installation file by running the following command
sudo tar -xvzf OpenFOAM-v2012-windows10.tgz -C /opt/ sudo chown -R $USER /opt/OpenFOAM
Enter your Linux password to allow the process to start. if tar is not installed in your Linux version, you have to install it using the command:
sudo apt install tar
- You can Install the additional dependencies
sudo apt install bison flex m4
3.2 Configure the bash-shell
- Once only you need to Run the following command to set the OpenFOAM working environment
echo "source /opt/OpenFOAM/OpenFOAM-v2012/etc/bashrc" >> ~/.bashrc
source $HOME/.bashrc
3.3 Checking of Open FOAM Installation
- OpenFOAM installation needs to verify by running any one OpenFOAM tutorial
- You have to copy any tutorial ( e.g. cavity) to the Ubuntu folder
- Enter command in the terminal to make a mesh of geometry (blockMesh)
- Run it by typing: icoFoam
mkdir -p /mnt/c/Users/<USER>/tutorial
cd /mnt/c/Users/<USER>/tutorial
cp -ar $FOAM_TUTORIALS/incompressible/icoFoam/cavity/cavity .
cd cavityNew
blockMesh
icoFoam
2.4 Installation of Para View and FoamToTecplot
- Install Para View to visualize mesh files, a GUI-based post-processing tool
- The case can be visually checked using Para View.
- You can download the Para view and install it within Windows 10: Download Para view
- Click here : Userguide of Paraview
- Third Pary post-processing tools like FLUENT and Tecplot can be used for OpenFOAM.
- You must know text command for them:
- Foam data can be exported to Tecplot: watch the video
