CFD Hardware Guidelines

Guidelines for Selection of CFD Hardware

CFD simulations required the following things should be considered while purchasing any hardware for CFD simulations. Apart from the investment of CFD Software as given in the page, CFD engineers need to think suitable hardwares for CFD simulations. High end simulations need more capital investment for CFD simulations.

Multi-core CPU

  • For industrial simulations, they should think of at least 12 core CPUs to finish the simulation in less time
  • You can select number of cores or threads as per your budget
  • CFD simulations are typically CPU-intensive, so a powerful multicore processor is crucial.
  • High-end CPUs from Intel (e.g., Xeon) or AMD (e.g., Ryzen Threadripper or EPYC) can be expensive but offer excellent performance.
  • Prices for high-performance CPUs can range from several hundred to several thousand dollars.

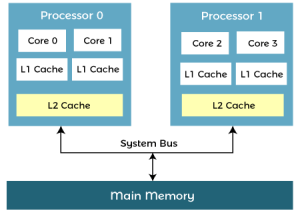

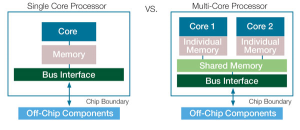

what is multicore processor for CFD Simulations
what is multicore processor for CFD Simulations

Memory

  • Random access Memory is essential for loading and writing of large size of data during the simulation
  • CFD simulations often require a significant amount of RAM to handle large datasets and mesh sizes.
  • Depending on your simulation needs, you may need anywhere from 16 GB to 256 GB  for most cases.
  • The cost of RAM modules depends on capacity and speed, but it’s a relatively affordable component compared to CPUs and GPUs.
  •  To handle large mesh sizes, higher RAM is required. The following thumb rules must note:
    • 5 Million cells:    4 to 8 GB RAM
    • 10 Million Cells:   16 GB RAM
    • 30 Million Cells:    64 GB RAM
    • 50 Million Cells:    256 GB RAM
    • 100 Million cells:    522 GB RAM
    • 500 Million cells:   1 TB RAM
  • For complex multiphysics simulations like multiphase  combustion modleing,you would need 10 GB RAM for per unit millions cells.
Good Memory RAM Required for CFD Simulation
Good Memory RAM Required for CFD Simulation

Graphics Card (GPU)

  • the workstation must have discrete graphics cards or separate GPU units to handle geometries of more CAD features
  • As per ANSYS FLUENT requirement, 4 GB graphics is required. But 8 GB is recommended for high end simulations
  • For high-performance computing (HPC) machines or supercomputers, GPUs are connected with each node or CPU
  • While CFD simulations primarily rely on the CPU, some CFD software packages support GPU acceleration for specific tasks.
  • High-end GPUs from NVIDIA (e.g., Quadro or GeForce RTX) can be beneficial for GPU-accelerated CFD, but they can also be very expensive.
  • Prices for high-end GPUs vary widely but can range from several hundred to over a thousand dollars as mentioned  in the post.

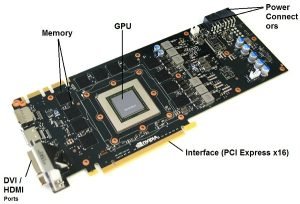

Graphics-Card-for CFD
Graphics-Card-for CFD

Data Storage

  • Your PC  should have space for the storage of simulation files
  • Fast and ample storage is essential for storing simulation data, input files, and results.
  • Consider using a combination of SSD (Solid-State Drive) for speed and HDD (Hard Disk Drive) for storage capacity.
  • SSDs are faster but more expensive per gigabyte compared to HDDs.
  • How much simulation files take space
    • OpenFOAM can create multipe files you can merge files after  simulations on the HPC
    • ANSYS or Converge has  “.h5″  file format which occupies less space.
    • ANSYS FLUENT files occupy around 1 GB of space for  1 million cells
    • Example: 10 M cells will take 10 GB space for combined case and data files for combustion or multiphase simulations
    • Open FOAM files would take more space than ANSYS FLUENT unless you use file compression tools
  • For data storage, you should have at least 100 GB of space in the drive
HPC Architecture for CFD
HPC Architecture for CFD

Maintenance Issues of Hardware

  • Keep in mind that the specific hardware requirements can vary depending on the complexity of your CFD simulations and the software you use.
  • It’s a good idea to consult with experts or the software vendor’s recommendations for hardware specifications.
  • Additionally, workstation vendors like Dell, HP, Lenovo, and others offer pre-configured workstations optimized for CFD simulations, which can save you time and ensure compatibility.
  1. Cooling:
    • Efficient cooling solutions are essential to maintain CPU and GPU temperatures during long simulations.
    • Consider aftermarket CPU and GPU coolers if the stock cooling solutions are insufficient.
  2. Power Supply Unit (PSU):
    • Select a high-quality PSU with sufficient wattage to support all components and potential future upgrades.
  3. Operating System:
    • Choose an operating system that is compatible with your CFD software.
    • Linux distributions (e.g., CentOS, Ubuntu) are commonly used for CFD simulations due to their stability and performance benefits.
  4. Professional Support and Warranty:
    • Consider purchasing a workstation from a reputable manufacturer that offers professional support and warranty services.
  5. Budget and Future Expansion:
    • Balance your workstation’s performance with your budget and long-term needs.
    • Consider future scalability and expansion options if you anticipate growing computational demands.
  6. Monitor and Peripherals:
    • Invest in a high-quality monitor with good color accuracy for post-processing and visualization of simulation results.
    • Ensure you have a comfortable keyboard, mouse, and other peripherals.
  7. Network Connectivity:
    • High-speed network connectivity is essential if you need to transfer large simulation data sets.

Recommended Workstations for CFD simulations

The following are the most advanced workstations for industrial applications.

Dell Tower 7920  Workstation

  •  This one the scalable workstations. we can expand RAM, Data Storage, number of  Graphics card
  • Multi-core processor :
    • Intel® Xeon® Silver/ Gold Processors,
    • Number core you can select as per availability  of core in processors
    • For 24 cores,  there are 48 threads
  • RAM:
    • RAM 64 GB DDR4, expandable to 3 TB
  • Graphics cards:
    • 5 GB Nvidia Quadro P2000
    • You can customize the graphics cards
  • Storage:
    • SSD storage: 480 SSD
    • Sata HD : 2 TB

Dell Precision T7920 Tower Workstation

Lenovo Think station P920

  • Multi-core processor: Intel® Xeon®  Gold Processors, 24 cores, 48 threads
  • RAM: 64 GB DDR4, expandable to 3 TB
  • Graphics cards: 16 GB Nvidia Quadro RTX A4000
  • Storage: 480 SSD, 2 TB Sata HD



How can you buy a workstation?

  • New workstations are expensive, you have to invest at least  60000 to 10,00,000 INR ( 5000 – 12000 USD) for computer hardware. The cost of commercial CFD solvers is also there.
  • To save cost and electronic wastage, you can buy a refurbished workstation at a cost of 25% – 50% of new model
  • If you want to buy a refurbished workstation at the lowest rate in India, you can contact us: cfdflowengineering@gmail.com
