CFD Modeling of IC Engines Using  Star CCM, FLUENT and OpenFOAM

 Scope of CFD Modeling for IC Engine

  • CFD modeling of IC engines is essential to assess the combustion of new mechanism of fuel and air inlets and emissions are reduced at a lower cost of analysis
  • CFD) simulations are important for the development of modern IC engines:spark-ignited, two-stroke, diesel injection, homogeneous charge compression ignition (HCCI) and dual-fuel reciprocating engines.
  • CFD analysis helps to optimize engine performance using commercial CFD software
  • CFD results provide insights for further improvements in engine technologies

 CFD Software for Engine Modeling

  • CFD modeling some IC Engine problems is challenging like in-cylinder simulation.
  • It comprises a combination of high-speed flows with complex combustion phenomenon
  •  For CFD modeling,  mesh motion need a very high level of mass conservation with  very small time scales (fractions of a crank-angle degree (milliseconds)
  • The numerical have to be selected properly to achieve stable residuals with reasonable time step.
  • Selection turbulence model and thermal radiation model
  • Selection of complex physics models is essential
    • Fuel injection Model : Lagrangian spray, droplet-wall interactions, wall films
    • Combustion Model: Ignition, flame propagation, emissions formation, knock

Star CCM

    1. Star ICE module is used for IC Engine Modeling
    2. Star CCM IC engine provides Automatic meshing
    3. Cold Flow to maximize trapped air mass
    4. Charge motion to improve mixing of inducted air and injected fuel
    5. Design Exploration is used to automatically optimize engine performance
    6. Validation of some results with correlation and experimental data
    7. Combustion Set up






ANSYS FLUENT



CONVERGE

  • Converge is also a popular CFD platform for automatic meshing and simulation for IC Engines by selection turbulence and combustion models
  • CONVERGE uses hexahedral grid adaptive meshing technique to get better resolution around the flames and high velocity gradient regions



 AVL FIRE




 Step for Modeling of IC Engines


Step 1: Create the  Solid Model of of IC Engines which includes cylinder, inlet and outlet manifolds

Step 2: Generate mesh in ANSYS mesher or ANSYS poly hexmesher

Step 3: Set the boundary conditions by selecting IC Engine modules

  • Specify the engine parameters crank position, compression ratio, piston time, intake and outlet valve positions

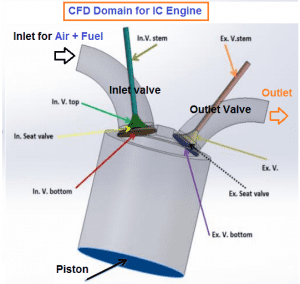

CAD Model of IC Engine

  • For making geometries of SI/CI engines, any CAD tools can bee used
  • Select the CFD domain as per scope of analysis considering inlet and outlet ducts

The meshing of IC Engine

  • Generally, tetrahedral elements are generally used around the valves and dynamic hexahedral element in dynamic (moving) parts of the cylinder
  • Advanced Poly hex meshing  can be used for less computational cost

Polyhex Meshing of Combustion Engine

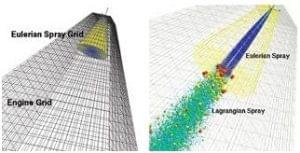

Multiphase Meshing of Diesel Engine Combustion

 Boundary Conditions and Selection of Combustion models

  • Select the appropriate boundary conditions at the inlet or outlet

  • For SI engine:

    •  you can define stoichiometric air and fuel mixture at the inlet
    • Define ignition energy required the combustion
    • Define the outlet as a pressure outlet
    • Select SI engine models
    • Select turbulence model and energy equations
    • Select suitable premixed combustion models
    • Using the UDF, define the piston position with dynamic mesh and crank parameters

  • For  Diesel (CI) engine

    •  you can define air  at the inlet
    • Define suitable spray models
    • Define the outlet as pressure outlet
    • Select CI engine models
    • Select turbulence model and energy equations
    • Select multi-phase model ( Eulerian and Lagrangian)
    • Select suitable non-premixed combustion models
    • Using the UDF, define the piston position with dynamic mesh and crank parameters

Job Leading Online Courses with 24x7 Support : Skill-Lync : Projects


 Results and Analysis

  • Using CFD simulation, we can get  the contours of velocity, pressure and temperature for different position of crank
  • CFD results can be compared with theoretical or experimental results

Summary

  • Numerical simulations can be carried out using commercial and open-source CFD software
  • CFD simulations helps to predict the flow o fair and fuel  mixing and high temperature region
