Introduction to Rocket Propulsion

Rocket propulsion is a method of generating thrust that propels a rocket or spacecraft through the vacuum of space or within an atmosphere.
The fundamental principle behind rocket propulsion is Newton’s third law of motion, which states that for every action, there is an equal and opposite reaction.
In the case of rocket propulsion, the action is the ejection of mass (propellant) at high velocity out of the rocket’s nozzle, and the reaction is the forward thrust that propels the rocket in the opposite direction.

Rocket propulsion is a method of generating thrust that propels a rocket or spacecraft through the vacuum of space or within an atmosphere.

Physics of Rocket Propulsion

The principle of rocket propulsion is based on Newton’s third law of motion, which states that “for every action, there is an equal and opposite reaction.
” In the context of rocket propulsion, this law means that when a rocket expels mass (propellant) at high velocity in one direction, it generates an equal and opposite force, known as thrust, that propels the rocket in the opposite direction.

Here’s how the principle of rocket propulsion works in more detail:

Conservation of Momentum:

When the rocket expels the propellant, it gains momentum in the opposite direction due to the mass and velocity of the ejected propellant.
According to the law of conservation of momentum, the total momentum of a system remains constant unless acted upon by external forces.

Acceleration of Rocket

As the high-velocity propellant is expelled through a nozzle at the rear of the rocket, it produces a jet of exhaust gases.
These gases are accelerated to very high speeds as they pass through the nozzle.
The nozzle is specifically designed to increase the velocity of the gases and, therefore, their momentum.

Action and Reaction

The accelerated exhaust gases are expelled from the rocket at high speed in one direction (action).
As a result of Newton’s third law, the rocket experiences an equal and opposite force in the opposite direction (reaction), which is the thrust that propels the rocket forward.

Continuous Process

Rocket propulsion is a continuous process as long as there is propellant to be expelled. As the rocket’s engines continue to burn propellant and expel it at high speed, the rocket experiences a continuous thrust, allowing it to overcome the force of gravity and achieve acceleration.
It’s important to note that rocket propulsion doesn’t rely on the atmosphere for thrust generation, unlike some other forms of propulsion like jet engines, which need air to operate.
This is why rockets can operate in the vacuum of space, making them the primary means of propulsion for spacecraft and vehicles designed for space exploration.
The efficiency and performance of rocket propulsion depend on various factors, including the design of the engine and nozzle, the type of propellant used, and the overall mass ratio of the rocket (the mass of the fully fueled rocket compared to the mass of the empty rocket).
Engineers continuously work on improving rocket propulsion systems to achieve higher thrust-to-weight ratios and increase the payload capacity and efficiency of space missions
The thrust acting on the rocket is calculated using the mass flow rate of flue gas (m), nozzle exit velocity (Ve) and pressure drop across the nozzle (Pe -P0)

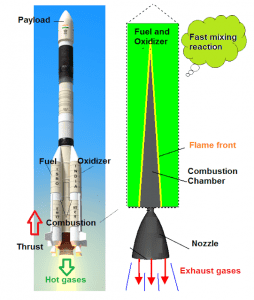

Key Components of Rocket Propulsion

Propellant:
- The material used for generating thrust. It can be a combination of fuel and oxidizer (chemical rockets), or in some cases, simply compressed gas (like in cold gas thrusters).
Combustion Chamber:
- This is where the propellant undergoes combustion (burning) to produce high-pressure and high-temperature gases.
Nozzle: The nozzle is the part of the rocket where the high-pressure gases are expanded and accelerated to produce the thrust. The shape of the nozzle is crucial to achieving maximum efficiency in converting high-pressure gas energy into kinetic energy (speed).

Types of Rocket Propulsion

Chemical Rockets:

Most rockets in use today are chemical rockets, which use chemical reactions between fuel and oxidizer to produce thrust.
Common propellants include liquid hydrogen and liquid oxygen (LOX) for cryogenic engines, and kerosene (RP-1) and LOX for traditional engines.

Electric Propulsion:

Electric propulsion systems utilize electrical power to accelerate propellant, which typically consists of ions or other charged particles.
This method is more efficient than chemical rockets but provides lower thrust levels, making it ideal for long-duration space missions like deep space exploration.

Nuclear Rockets:

These are conceptual rocket engines that use nuclear reactions to heat propellant and produce thrust. They could potentially offer higher performance than chemical rockets but pose significant technical and safety challenges.

Solid Rockets

Solid rockets have propellants in a solid form.
They are simple and reliable, commonly used as boosters for initial liftoff or for military applications.

Hybrid Rockets

These rockets use a combination of liquid and solid propellants. Typically, one propellant is in the liquid state, while the other is in a solid state.

Cold Gas Thrusters

Simplest rocket engines that expel compressed gas for small adjustments in spacecraft attitude or trajectory.
Rocket propulsion is a critical technology for space exploration, satellite launches, and various aerospace applications. Continuous research and development aim to improve efficiency, reduce costs, and enable ambitious missions beyond Earth’s orbit.

Scope of CFD Modeling for Rocket Propulsion

Computational Fluid Dynamics (CFD) modeling plays a significant and valuable role in the design, analysis, and optimization of rocket propulsion systems.
The scope of CFD modeling for rocket propulsion is quite extensive and encompasses various aspects of the propulsion system. Some of the key areas where CFD modeling is applied in rocket propulsion include:

Nozzle Design:

The design of the rocket nozzle is crucial for achieving optimal thrust and efficiency.
CFD simulations help in studying the flow properties inside the nozzle, optimizing its shape, and predicting the expansion of exhaust gases.
This information is essential for achieving high exhaust velocities and reducing losses due to inefficient nozzle designs.

Combustion Analysis:

CFD is used to study the turbulent multiphase combustion process in rocket engines, particularly in liquid rocket engines.
It helps in understanding the combustion stability, temperature distribution, combustion efficiency, and species concentration during the combustion process.

Performance Prediction

CFD simulations aid in predicting the overall performance of the rocket propulsion system by analyzing the interaction of the propellant, combustion process, and nozzle design.
Engineers can use CFD models to estimate the thrust, specific impulse, and other performance parameters for different operating conditions.

Heat Transfer Analysis

Rocket engines experience extreme thermal loads during operation.
CFD models can predict heat transfer rates, thermal stresses, and temperature distributions in the engine components. This information is vital for designing efficient cooling systems and ensuring the structural integrity of the engine.

Turbulent Flow Modeling:

The flow inside rocket engines can be highly turbulent due to the high velocities and pressure gradients.
CFD modeling allows for the simulation of turbulent flow phenomena, such as boundary layer separation, shock waves, and recirculation zones, which affect engine performance.

Injector Design

CFD simulations aid in the design and optimization of injectors for liquid rocket engines.
Fuel (propellant) Injectors play a crucial role in mixing and atomizing the propellant components, and CFD helps in understanding the spray characteristics and combustion stability.

Thrust Vector Control (TVC):

CFD modeling is used to study the flow properties and forces in thrust vector control systems.
TVC systems are crucial for maneuvering and stabilizing rockets during flight.

Transient Analysis:

CFD models can simulate transient behavior during engine startup, shutdown, and other dynamic events. Transient simulations are essential for understanding the engine’s response to changes in operating conditions.

Acoustic Analysis:

CFD can predict the acoustic signature of rocket engines, which is essential for assessing their impact on the vehicle and surrounding structures.

Summary

CFD modeling significantly reduces the need for costly experimental testing, accelerates the design process, and provides valuable insights into the complex flow phenomena occurring in rocket propulsion systems.
As computing power and simulation techniques continue to advance, CFD will play an even more critical role in the future of rocket propulsion development and optimization.
