Principle and Applications of Fluid Velocity Measurement Devices and Uncertainty

Principle of Fluid Velocity Measurement Devices

  • Various devices are used to measure fluid flow velocity, and each operates on specific principles tailored to its design and application.
  • Flow measurement principles are discussed in the post. Most of these devices are also used for velocity measurements (m/s, ft/s). The only difference is in calculation and unit of measurement.
  • Here are the principles underlying some common fluid flow velocity measurement devices:

Pitot Tubes:

  •  Pitot tubes operate based on Bernoulli’s equation, which relates the pressure of a fluid to its velocity.
  • The Pitot tube has an open end facing the fluid flow, capturing the dynamic pressure, and a side opening measuring the static pressure.
  • The difference between these pressures is used to calculate the fluid velocity.

Principle of Pitot Tube for Flow Measurement

Principle of Pitot Tube for Flow MeasurementUltrasonic Transit Time Flowmeters:

  •  Ultrasonic transit time flowmeters use the speed of sound in a fluid.
  • Ultrasonic signals are transmitted both upstream and downstream, and the time difference between the two signal paths is used to calculate the fluid velocity.
Velocity Calculation of Ultrasonic flow meter
Velocity Calculation of Ultrasonic flow meter

Doppler Ultrasonic Flowmeters:

    • These flowmeters use the Doppler effect, which involves frequency changes in waves as a result of relative motion.
    • Ultrasonic waves are transmitted into the fluid, and the frequency shift caused by the moving particles in the fluid is analyzed. The frequency shift provides information about the fluid velocity.
Principle of Doppler Ultrasonic Flow Measurement
Principle of Doppler Ultrasonic Flow Measurement

Electromagnetic Flowmeters:

  • Electromagnetic flowmeters are based on Faraday’s law of electromagnetic induction.
  • A magnetic field is applied perpendicular to the fluid flow, inducing a voltage in the conductive fluid.
  • The induced voltage is directly proportional to the fluid velocity, allowing for the measurement of flow velocity.
Principle of Electromagnetic Flow Measurement
Principle of Electromagnetic Flow Measurement

Vortex Shedding Flowmeters:

  •  Vortex-shedding flowmeters create vortices as fluid flows past a bluff body.
  • The frequency of these vortices is proportional to the fluid velocity. By detecting and counting the vortices, the flow velocity can be determined.
Principle of Vortex flow meter
Principle of Vortex flow meter

Turbine Flowmeters:

  •  Turbine flowmeters convert kinetic energy into mechanical rotation.
  • As the fluid flows through turbine blades, they rotate at a speed proportional to the fluid velocity.
  • The rotation is then translated into a flow rate measurement.
Principle of Turbine Flowmeter
Principle of Turbine Flowmeter

Paddle wheel Flowmeters:

    • Principle: Paddlewheel flowmeters consist of a rotating wheel placed in the fluid stream.
    • The fluid flow causes the wheel to rotate, and the rotation speed is directly proportional to the fluid velocity, providing a measure of the flow rate.

Coriolis Mass Flowmeters:

    • Coriolis mass flowmeters use the Coriolis effect, where a vibrating tube experiences a phase shift due to fluid flow.
    • The degree of phase shift is proportional to the mass flow rate and, consequently, the fluid velocity.
Principle of Coriolis Flowmeter
Principle of Coriolis Flowmeter

Vibration flow Meter

  • A vibration flow meter measures the flow rate of a fluid by detecting the vibrations caused by the fluid as it flows through a pipe or conduit.
  • This type of flow meter operates on the principle that the frequency of vibration is proportional to the flow velocity.

Vibrating Flow Tube for Flow Measurement

Application of Fluid Velocity Measurement

  • Accurate fluid velocity measurements are integral to the success and efficiency of numerous processes across diverse industries, impacting safety, reliability, and performance in various applications.
  • The choice of measurement technology depends on the specific requirements of each application.
  • Fluid velocity measurement plays a crucial role in various scientific, industrial, and environmental applications.
  • Accurate knowledge of fluid velocities is essential for understanding and optimizing processes, ensuring safety, and making informed decisions.
  • Here are some key applications of fluid velocity measurement:

Industrial Processes:

  • Application: Monitoring fluid flow in pipelines, manufacturing processes, and chemical plants.
  • Importance: Ensures efficient operation, detects potential issues like blockages or leaks and aids in process optimization.
Streamlines for water tunnel for testing of car
Streamlines for water tunnel for testing of car

Environmental Monitoring:

  • Application: Studying water flow in rivers, streams, and oceans.
  • Importance: Helps in understanding and managing water resources, predicting flooding, and assessing environmental impact.
Cyclonic Flow in atmosphere
Cyclonic Flow in the atmosphere

Meteorology:

  • Application: Measuring wind speed in the atmosphere.
  • Importance: Critical for weather forecasting, understanding atmospheric dynamics, and predicting severe weather events.
Convergence and Divergence based on curl of velocity
Convergence and Divergence based on curl of velocity

Aerospace Engineering:

  • Application: Monitoring airspeed in aircraft.
  • Importance: Essential for flight control systems, fuel efficiency, and overall aircraft performance or aerodynamics

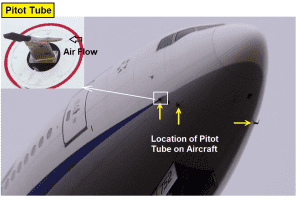

Pitot tube for velocity measurement of aerospace

Pitot tube for velocity measurement of aerospace

Automotive Engineering:

  • Application: Measuring fuel flow in automotive fuel injection systems and speed of vehicles relative to ground.
  • Importance: Contributes to fuel efficiency, emission control, and overall engine performance.
CFD modeling of flow over a car
CFD Modeling of flow over a car
Swirl and Tumble flow in IC Engine combustion
Swirl and Tumble flow in IC Engine combustion

HVAC Systems:

  • Application: Determining air velocity in heating, ventilation, and air conditioning (HVAC) systems.
  • Importance: Essential for maintaining indoor air quality, optimizing energy efficiency, and ensuring proper ventilation.
CFD Modeling of HAVC air conditioning
CFD Modeling of HAVC air conditioning

Power Generation:

  • Application: Measuring fluid velocities in turbines and cooling systems.
  • Importance: Optimizes energy conversion efficiency, ensures equipment reliability, and aids in preventive maintenance.

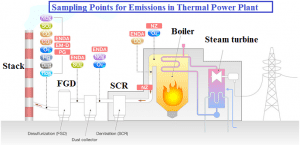

Measurement Points in thermal Power Plants
Measurement Points in Thermal Power Plants



Oil and Gas Industry:

  • Application: Monitoring fluid flow in pipelines, measuring flow rates of oil and gas.
  • Importance: Ensures efficient transportation of fluids, helps in detecting leaks and contributes to the overall safety and reliability of the infrastructure.
Layout boiler with SCR system
Layout boiler with SCR system

Chemical Processing and Manufacturing:

  • Application: Measuring flow rates of chemicals and fluids in manufacturing processes.
  • Importance: Critical for controlling the production of various chemical compounds, ensuring precise mixing, and maintaining product quality.

Biomedical Applications:

  • Application: Measuring blood flow velocity in blood vessels.
  • Importance: Critical for diagnosing cardiovascular conditions, evaluating the effectiveness of medical treatments, and conducting medical research.
CFD Results Velocity contours of Simple Lungs
CFD Results Velocity contours of Simple Lungs

Hydrology and Environmental Monitoring:

  • Application: Studying river and stream flow rates, monitoring groundwater movement, and assessing water quality.
  • Importance: Helps in understanding the dynamics of water bodies, predicting flood risks, and managing water resources efficiently.
Hydro static Pressure Measurement
Hydrostatic Pressure Measurement

Oceanography:

  • Application: Monitoring currents and sea surface velocities.
  • Importance: Provides insights into ocean circulation patterns, assists in climate studies, and aids in the tracking of pollutants and marine life.

Marine Industry:

  • Application: Measuring water flow around ships and submarines.
  • Importance: Essential for designing efficient hulls, optimizing propulsion systems, and ensuring safe navigation.

Research and Development:

  • Application: Fluid dynamics research, laboratory experiments.
  • Importance: Provides valuable data for understanding fundamental principles of fluid behavior, optimizing experimental setups, and developing new technologies.



Uncertainty Analysis in Velocity Measurement

  • Uncertainty analysis is crucial in fluid velocity measurements to assess the reliability and accuracy of the experimental data.
  • It helps quantify the potential errors and uncertainties associated with the measurement process.
  • Here are key considerations for uncertainty analysis in fluid velocity measurement:
Flow Measurement Tehchiques
Flow Measurement Techniques

Calibration Uncertainty:

    • Account for uncertainties in the calibration of measurement instruments (e.g., anemometers, PIV systems).
    • Verify the calibration process and its traceability to established standards.

Instrument Resolution:

    • Consider the resolution of the measurement instruments. Smaller resolutions may result in higher uncertainty, especially when measuring low velocities.

Instrument Precision and Accuracy:

    • Understand the precision and accuracy specifications of the instruments used for velocity measurements.
    • Evaluate how well the instruments meet their specified performance criteria.

Sensor Placement and Alignment:

  • Assess uncertainties related to the placement and alignment of sensors or probes within the flow field.
  • Small misalignments or variations in probe positioning can introduce errors.

Flow Conditions:

    • Consider uncertainties arising from variations in flow conditions during the experiment.
    • Factors such as turbulence, fluctuations, and changes in ambient conditions can affect measurement accuracy.

Sampling Rate and Averaging:

  • Evaluate the impact of the chosen sampling rate and the method of data averaging on the uncertainty.
  • Higher sampling rates and longer averaging times can reduce random errors.

Repeatability and Reproducibility:

  • Assess the repeatability and reproducibility of the velocity measurements.
  • Conduct multiple trials under similar conditions to determine the consistency of results.

Environmental Conditions:

  • Consider environmental factors such as temperature, pressure, and humidity that can influence measurement accuracy.
  • Account for any variations in these conditions during the experiment.

Data Processing:

  • Recognize uncertainties associated with data processing techniques, including filtering, interpolation, and velocity profile reconstruction.
  • Document the methods used for data processing and their impact on the results.

Manufacturer Specifications:

  • Refer to the manufacturer’s specifications for measurement instruments and sensors to understand their limitations and uncertainties.

Combining Uncertainties:

  • Combine individual uncertainties using appropriate statistical methods to obtain an overall uncertainty estimate.
  • Consider contributions from various sources, including systematic and random errors.

Reporting:

  • Clearly document the uncertainties associated with velocity measurements in research papers or experimental reports.
  • Use standardized methods for reporting uncertainties, such as the Guide to the Expression of Uncertainty in Measurement (GUM) guidelines.



Comparison of velocity from experiment and CFD simulations

  • comparing experimental velocity data with Computational Fluid Dynamics (CFD) simulation results is a common practice in fluid dynamics and engineering.
  • Such a comparison helps validate the accuracy of CFD models and their ability to represent real-world physical phenomena. Here’s a general guide on how to approach the comparison:
  1. Define the Comparison Metrics:
    • Identify specific metrics for comparison, such as mean velocity, turbulent intensity, or velocity profiles.
    • Consider both qualitative and quantitative measures.
  2. Experimental Data:
    • Ensure the experimental data is reliable and accurate. Use appropriate measurement devices, such as anemometers or particle image velocimetry (PIV) systems.
    • Understand the experimental setup, conditions, and uncertainties associated with the measurements.
  3. CFD Simulation Setup:
    • Verify that the CFD simulation setup accurately represents the physical system.
    • Ensure the mesh resolution is adequate, particularly in regions of interest.
    • Validate the turbulence model choice against experimental data or established benchmarks.
  4. Comparing Mean Velocities:
    • Compare the mean velocities at specific locations in the domain.
    • Evaluate discrepancies in terms of percentage differences or absolute errors.
    • Consider statistical measures, such as root mean square error (RMSE) or coefficient of determination (R^2).
  5. Velocity Profiles:
    • Examine velocity profiles across different sections of the flow.
    • Plot and compare experimental and CFD velocity profiles.
    • Assess the agreement in shape, magnitude, and location of key features.
  6. Turbulence Quantities:
    • If turbulence is a significant factor, compare turbulent quantities such as turbulence kinetic energy and turbulent viscosity.
    • Evaluate the agreement in turbulence intensity and distribution.
  7. Sensitivity Analysis:
    • Conduct sensitivity analyses by varying key parameters in the CFD simulation (e.g., mesh density, turbulence model constants) to understand their impact on results.
  8. Qualitative Comparison:
    • Consider visual comparisons, such as flow patterns and vortex structures.
    • Evaluate qualitative aspects of the simulation, such as the presence of separation zones or recirculation regions.

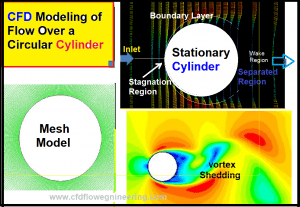

CFD Modeling of flow over cylinder
CFD Modeling of flow over a cylinder

Conclusion

  • Understanding these underlying principles is essential for selecting the appropriate flow velocity measurement device for specific applications.
  • Factors such as the type of fluid, required accuracy, and environmental conditions will influence the choice of the most suitable device.
  • These applications highlight the diverse range of fields where fluid velocity measurement is indispensable.
  • The choice of measurement technique depends on the specific requirements of each application, including the type of fluid, the range of velocities, and the environmental conditions.
  • By systematically addressing these uncertainty factors and conducting a comprehensive uncertainty analysis, researchers can provide a more accurate assessment of the reliability of fluid velocity measurements and enhance the credibility of their experimental results.
