Scope of CFD for Erosion Modelling and Material Selections

What is Erosion

  • Erosion is the process by which materials, typically solids, are worn away due to mechanical action.
  • In various contexts, erosion can refer to the removal of soil, rock, or other material by natural forces like water, wind, or ice, as well as the wear and degradation of man-made materials due to mechanical interactions.
erosion in pipe
erosion in pipe

Types of Erosion:

  1. Natural Erosion:
    • Water Erosion: Caused by the action of rivers, rain, waves, and glaciers. Water erosion can lead to the formation of valleys, canyons, and coastal erosion.
    • Wind Erosion: The removal of soil and rock particles by wind, leading to phenomena such as desertification and dust storms.
    • Ice Erosion: Glacial movements can erode rock and soil, shaping landscapes through processes like plucking and abrasion.
  2. Mechanical Erosion:
    • Abrasive Erosion: Occurs when hard particles (e.g., sand, dust) are carried by a fluid (liquid or gas) and strike a surface, wearing it away. Common in industrial applications like pipelines and turbomachinery.
    • Cavitation Erosion: Caused by the collapse of vapor bubbles in a liquid near a solid surface, resulting in high-pressure impacts that erode the material. Often seen in hydraulic systems and marine propellers.
    • Corrosive Erosion: Involves chemical reactions combined with mechanical wear. Fluids with corrosive properties (e.g., acids) can weaken materials, which are then more easily eroded by mechanical forces.

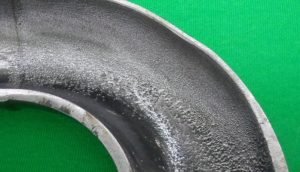

solid particle erosion on pipe
solid particle erosion on pipe

Erosion Modeling Equations and Methods

  • Erosion modeling involves the study and simulation of material wear due to various erosive agents, such as fluid flow, particles, or chemical interactions.
  • It is widely used in different fields to predict and mitigate the effects of erosion.

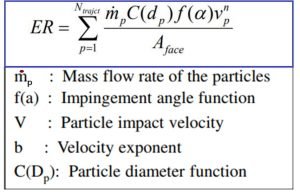

Equations for erosion Modeling
Erosion Modeling Equations and Methods
  • The rate of erosion is proportional to the velocity power exponential (n) and mass flow rate of particles and particle diameter function

Where,

  • mp = mass flow rate of particles
  • C(dp) = Particle diameter function
  • α= the impact angle the particle path with the wall face
  • f (α) =  Function of impact angle,
  • ν = Relative particle velocity,
  • b(ν) =  function of relative particle velocity,
  • Aface=  is the area of the cell face at the wall.
  • Default values, c= 1.8*10-9, f= 1, b= 0 ,

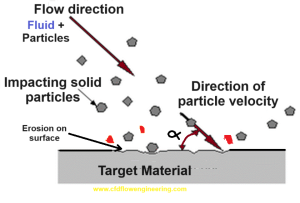

Flow Characteristics of Erosion
Flow Characteristics of Erosion
Effect of angle impingement on erosion on Material
Effect of angle impingement on erosion on Material

Methods for Erosion Modeling

  • Computational Fluid Dynamics (CFD):
    • CFD is extensively used to simulate fluid flow and the resulting erosion patterns.
    • It provides detailed insights into the interaction between fluids and surfaces.
  • Empirical Models:
    • Based on experimental data, empirical models are used to predict erosion rates under specific conditions.
  • Multiphase Flow Models:
    • These models simulate the behavior of solid particles within a fluid flow, crucial for understanding erosion in systems carrying particulate matter.
  • Finite Element Analysis (FEA):
    • FEA helps in understanding the stress distribution and material wear in complex geometries.

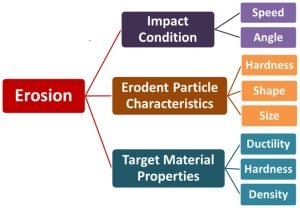

Erosion Impact Characteristics
Erosion Impact Characteristics

Factors Affecting Erosion:

  1. Material Properties:

    • Hardness: Harder materials generally resist erosion better than softer ones.
    • Toughness: Materials with high toughness can absorb more energy from impacts, reducing erosion.
    • Chemical Composition: The resistance to chemical erosion depends on the material’s reactivity with the eroding medium.
  2. Flow Characteristics:

    • Velocity: Higher velocities increase the kinetic energy of impacting particles, leading to more severe erosion.
    • Particle Size and Concentration: Larger particles and higher concentrations result in more significant erosive wear.
    • Impact Angle: The angle at which particles strike the surface affects the erosion rate, with different materials showing varying responses to impact angle
      Effect of angle impingement on erosion
      Effect of angle impingement on erosion
  3. Environmental Conditions:
    • Temperature: Elevated temperatures can alter material properties and increase erosion rates, especially in corrosive environments.
    • Pressure: High-pressure environments can enhance both mechanical and cavitation erosion.

Erosion in Engineering and Industry:

  • Pipelines and Fluid Transport Systems: Erosion can cause thinning and failure of pipes, particularly those transporting abrasive slurries or corrosive fluids.
  • Turbomachinery: Components such as blades and impellers in turbines, compressors, and pumps are subject to erosion from high-velocity fluid flows and particulate matter.
  • Manufacturing and Processing Equipment: Erosion affects the longevity and performance of equipment used in mining, oil and gas extraction, and chemical processing.

Applications of Erosion

  • Modeling of erosion is necessary to predict maintenance needs and prevent failures

1. Oil and Gas Industry

  • Pipeline Erosion: Erosion modeling helps predict the wear and tear in pipelines carrying abrasive materials, such as sand-laden crude oil. This is crucial for maintaining pipeline integrity and preventing leaks.
  • Downhole Tools and Equipment: Erosion models are used to estimate the lifespan of downhole tools and equipment exposed to high-velocity flows and abrasive particles.

2. Aerospace and Aviation

  • Jet Engine Components: Modeling erosion in jet engines, especially in turbine blades and other high-stress components, is essential for ensuring their durability and performance.
  • Aerospace Materials: Predicting erosion on the surfaces of aerospace materials helps in the selection of appropriate coatings and materials.

3. Marine and Offshore Structures

  • Ship Hulls: Erosion models can predict the wear on ship hulls due to continuous contact with water and particulate matter.
  • Offshore Platforms: Components of offshore platforms, such as risers and subsea equipment, are subject to erosion from seawater and sediments.

4. Civil Engineering

  • River and Coastal Erosion: Erosion modeling is used to predict and manage erosion in riverbanks and coastal areas. It helps in designing effective protection measures.
  • Infrastructure Durability: Understanding how erosion affects bridges, dams, and other structures helps in planning maintenance and protection strategies.

5. Mining and Mineral Processing

  • Equipment Wear: Predicting the erosion of mining equipment, such as crushers, conveyors, and slurry pumps, to optimize maintenance schedules and improve equipment lifespan.
  • Ore Processing: Modeling erosion in pipelines and other equipment used in the transport and processing of ores.

6. Environmental Studies

  • Soil Erosion: Erosion modeling helps in understanding and predicting soil erosion due to wind, water, and human activities. This is crucial for sustainable land management and agricultural practices.
  • Sediment Transport: Studying sediment transport in rivers and streams to manage sedimentation issues in reservoirs and waterways.

7. Industrial Applications

  • Manufacturing Processes: Predicting erosion in manufacturing processes involving abrasive materials or high-velocity fluid flows to improve process efficiency and product quality.
  • Heat Exchangers and Boilers: Modeling erosion in heat exchangers and boilers to predict maintenance needs and prevent failures.
Applications of Erosion Modeling in CFD Simulation
Applications of Erosion Modeling in CFD Simulation

Mitigation of Erosion:

  • Material Selection: Using erosion-resistant materials or coatings can significantly reduce wear.
  • Design Optimization: Optimizing flow paths and component geometries to minimize high-impact zones and turbulent flow.
  • Protective Measures: Implement barriers, liners, and filters to reduce exposure to erosive particles.
  • Operational Adjustments: Modifying flow conditions, such as reducing velocity or particle concentration, to lower erosion rates.

Types of Erosion Models in CFD Simulations

  • Computational Fluid Dynamics (CFD) modeling  of erosion  is carried out in commercial CFD solvers like ANSYS FLUENT and COMSOL
  • The erosion models are essential for predicting material wear due to particle-laden flows.
  • Here are some common types of erosion models used in CFD:

Empirical Erosion Models

  • Empirical erosion models are based on experimental data and statistical correlations.
  • These models use empirical formulas to estimate erosion rates based on factors like particle size, velocity, impact angle, and material properties.
  • Finnie Model: One of the earliest and simplest models, suitable for ductile materials. It considers the impact angle and assumes that erosion is caused by cutting and deformation of the material surface.
  • Bitter Model: Accounts for both cutting and deformation wear mechanisms. It is more comprehensive and can be applied to both ductile and brittle materials.
  • Oka Model: A widely used model that includes the effects of particle shape, hardness ratio between particles and the material, and the impact angle.

Mechanistic Erosion Models

  • Mechanistic models are based on the physics of particle impacts and material response. They provide a more detailed description of the erosion process by considering the mechanics of particle impact and material removal.
  • Tabakoff Model: Focuses on high-velocity impacts typical in turbomachinery applications. It incorporates particle size, velocity, impact angle, and material properties.
  • Ahlert Model: Combines empirical and mechanistic approaches, accounting for particle shape and material hardness.

Stochastic Erosion Models

  • Stochastic models incorporate the randomness of particle impacts and material removal processes.
  • They use probabilistic approaches to predict erosion rates, making them suitable for complex and irregular flows.
  • Monte Carlo Simulations: Use random sampling to simulate a large number of particle impacts, providing statistical predictions of erosion rates.

Cumulative Erosion Models

These models consider the cumulative effect of multiple particle impacts over time. They are used to predict long-term erosion and material wear.

  • Accumulative Damage Models: Track the progressive damage and material loss over time, incorporating the effects of repeated impacts.
Erosion and corrosion modeling in ANSYS FLUENT
Erosion and corrosion modeling in ANSYS FLUENT

CFD-Integrated Erosion Models

  • These models are integrated into CFD software to provide real-time erosion predictions based on flow field simulations. T
  • hey combine fluid dynamics with erosion predictions to offer a comprehensive analysis.
  • Eulerian-Eulerian Models: Treat both the fluid and particles as continuous phases, suitable for dense particle flows.
  • Eulerian-Lagrangian Models: Track individual particles within the fluid flow, providing detailed erosion predictions for dilute particle flows.

Erosion Models for Specific Applications

Some erosion models are tailored for specific applications and industries, considering unique conditions and requirements.

  • Oil and Gas Pipelines: Models that account for multi phase flows, particle size distribution, and fluid properties typical in oil and gas pipelines.
  • Aerospace and Turbo-machinery: Models designed for high-speed impacts, incorporating factors like particle rebound and secondary impacts.

Coupled Erosion-Deposition Models

These models account for both erosion and particle deposition, providing a holistic view of material wear and buildup in systems where particles can settle.

  • Erosion-Deposition Balance Models: Predict regions of both high erosion and particle deposition, useful for designing self-cleaning or low-maintenance systems.

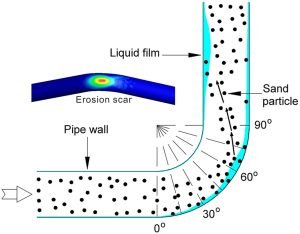

Eriosion of Pipes and CFD Modleing

Scope of Erison Modeling

  • Computational Fluid Dynamics (CFD) is a powerful tool for erosion modeling, providing detailed insights into the mechanisms and impacts of erosion on various components and systems. Here’s a comprehensive overview of the scope of CFD for erosion modeling:

Erosion Mechanism Analysis

  • Particle-Fluid Interactions: CFD can simulate the interactions between solid particles and fluid, helping to understand how these interactions lead to material erosion.
  • Impact Dynamics: It can analyze the impact of particles on surfaces, including impact angle, velocity, and energy, which are crucial for understanding erosion mechanisms.

Prediction of Erosion Rates

  • Erosion Patterns: CFD can predict where erosion is likely to occur within a system, highlighting areas of concern.
  • Quantitative Erosion Rates: It provides quantitative estimates of erosion rates based on particle size, concentration, velocity, and material properties.

CFD Modeling for prediction of erosion
CFD Modeling for prediction of erosion

Material Selection and Testing

  • Comparative Analysis: CFD can be used to compare the erosion resistance of different materials under similar operating conditions.
  • Material Behavior: It helps in understanding how different materials respond to erosive conditions, aiding in the selection of erosion-resistant materials.

Design Optimization

  • Component Geometry: CFD can optimize the geometry of components (e.g., pipes, valves, impellers) to minimize erosion by altering flow paths and reducing high-velocity impacts.
  • Protective Coatings: It can help in designing and testing protective coatings or liners to reduce erosion rates.

Operational Conditions Assessment

  • Flow Rate and Velocity: CFD can assess how changes in flow rate and velocity impact erosion, allowing for adjustments to operating conditions to mitigate erosion.
  • Particle Size and Concentration: It can analyze the effect of different particle sizes and concentrations on erosion, helping in optimizing filtration and separation processes.

Erosion in Multi-phase Flows

  • Gas-Liquid-Solid Flows: CFD can model erosion in complex multiphase flows, where the interactions between gas, liquid, and solid phases significantly affect erosion patterns.
  • Sediment Transport: It helps in understanding and predicting sediment transport and deposition, which are critical in erosion modeling for natural and industrial processes.

System-Level Analysis

  • Network Erosion: CFD can model erosion across an entire network, such as a pipeline system, identifying critical points where erosion is most severe.
  • Component Interaction: It assesses how erosion in one component affects the overall system performance and the erosion rates in interconnected components.

Maintenance and Lifecycle Management

  • Predictive Maintenance: By predicting erosion rates and patterns, CFD helps in planning maintenance schedules to prevent unexpected failures.
  • Lifecycle Analysis: It assists in estimating the lifespan of components based on erosion rates, aiding in lifecycle management and cost analysis.

Experimental Validation and Calibration

  • Validation with Experimental Data: CFD models can be validated and calibrated using experimental data to improve their accuracy and reliability.
  • Testing Scenarios: It allows for the testing of different scenarios and conditions that might be difficult or expensive to replicate experimentally.

Application-Specific Modeling

  • Oil and Gas Industry: CFD is extensively used to model erosion in pipelines, valves, and other equipment handling abrasive fluids.
  • Aerospace and Turbomachinery: It helps in predicting and mitigating erosion in jet engines, turbines, and other high-speed rotating machinery.
  • Mining and Mineral Processing: CFD models the erosion caused by abrasive slurries and particulate-laden flows in mining equipment and processing plants.
  • Water and Wastewater Treatment: It assists in understanding and reducing erosion in pumps, pipes, and treatment facilities handling particulate-laden fluids.



Conclusion

  • The scope of CFD for erosion modeling is vast and multidisciplinary, covering various industries and applications.
  • By leveraging CFD, engineers and researchers can gain deep insights into erosion mechanisms, optimize designs to minimize erosion, select appropriate materials, and develop effective maintenance strategies.
  • The integration of CFD with experimental data further enhances its accuracy and applicability, making it an indispensable tool in the study and management of erosion in fluid systems.

Reference

  1. Peng eta al.  Experimental and CFD Modeling of Erosion of ,   (2023)
