Scope of CFD Modeling for PCB cooling and Design

What is PCB?

  • A PCB, or printed circuit board, is a fundamental component in modern electronics.
  • It serves as a platform for mechanically supporting and electrically connecting electronic components using conductive pathways, tracks, and signal traces etched from copper sheets laminated onto a non-conductive substrate.

Parts of PCB and names
Parts of PCB and names

Key Parts of PCB

  1. Substrate or Base Material:
    • The substrate forms the foundation of the PCB. Common materials include fiberglass-reinforced epoxy laminate (FR-4), which is widely used due to its excellent insulating properties and cost-effectiveness.
    • Other materials like ceramic or metal-core substrates may be used for specific applications.

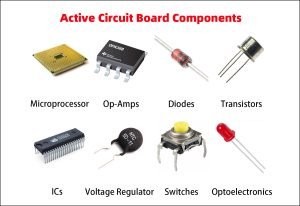

      Parts of PCBs
      Parts of PCBs
  2. Conductive Traces:
    • These are thin lines of copper or other conductive materials that form the electrical connections between different components on the PCB.
    • Traces are typically etched onto the substrate in specific patterns using chemical processes.
  3. Pads:
    • Pads are small areas of exposed copper where electronic components are soldered onto the PCB.
    • Pads provide electrical connections between the component leads and the conductive traces.
  4. Via Holes:
    • Via holes are small holes drilled through the PCB that connect different layers of the board.
    • They allow electrical signals and power to pass vertically through the board, facilitating the creation of multi-layer PCBs.
  5. Silkscreen:
    • The silkscreen is a layer of ink applied to the surface of the PCB for labeling and marking purposes.
    • It typically includes component designators, symbols, logos, and other information to aid in assembly and troubleshooting.
  6. Solder Mask:
    • The solder mask is a protective layer applied over the conductive traces and pads on the PCB.
    • It prevents accidental electrical connections, solder bridges, and corrosion while providing insulation against moisture and contaminants.
  7. Components:
    • Electronic components, such as resistors, capacitors, integrated circuits (ICs), transistors, and connectors, are mounted and soldered onto the PCB.
    • These components form the functional circuits and systems of the electronic device.
  8. Mounting Holes:
    • Mounting holes are strategically placed holes in the PCB used for securing the board to the device’s chassis or enclosure.
    • They ensure proper alignment and stability of the PCB within the electronic device.S
Heat sinks of PCB
Heat sinks of PCB

Heat Sinks of PCBs

  • Heat sinks are integral components used on printed circuit boards (PCBs) to manage and dissipate heat generated by high-power electronic components. Here’s an overview of heat sinks in the context of PCBs:
Heat Transfer for PCB sinks
Heat Transfer for PCB sinks

Purpose of PCB Sinks:

  • The primary function of a heat sink is to absorb and dissipate heat generated by power semiconductors, such as transistors, voltage regulators, or integrated circuits (ICs).
  • Heat sinks help maintain optimal operating temperatures for electronic components, preventing overheating and potential damage.
Types of Heat sinks for PCbs
Types of Heat sinks for PCBs

Types of  Sinks

  • Heat sinks come in various shapes, sizes, and materials depending on the specific application and thermal requirements. .
  • Various types of heat sinks can be used in conjunction with printed circuit boards (PCBs) to manage and dissipate heat effectively.
  • The choice of a specific type depends on factors such as the application, available space, thermal requirements, and the type of component generating heat. Here are some common types of PCB heat sinks:
  1. Tamped or Extruded Aluminum Heat Sinks:
    • Stamped or extruded aluminum heat sinks are cost-effective and widely used for general-purpose cooling.
    • They come in various shapes and sizes and are suitable for applications with moderate heat dissipation requirements.
  2. Machined Aluminum Heat Sinks:
    • Machined aluminum heat sinks are precisely manufactured through machining processes. T
    • hese heat sinks can have complex shapes and fins designed for efficient heat dissipation. They are often used in applications where customization is required.
  3. Copper Heat Sinks:
    • Copper has higher thermal conductivity than aluminum, making copper heat sinks more efficient in transferring heat.
    • However, copper is heavier and more expensive than aluminum. Copper heat sinks are often used in applications where thermal performance is critical.
  4. Skived or Zipper Fin Heat Sinks:
    • Skived or zipper fin heat sinks are manufactured by slicing thin fins from a solid block of aluminum or copper.
    • This design increases the surface area for better heat dissipation, making them suitable for compact spaces.
  5. Bonded Fin Heat Sinks:
    • Bonded fin heat sinks have fins attached to a base using methods like epoxy or soldering.
    • This design provides good thermal performance and is suitable for applications with moderate heat dissipation needs.
  6. Pin Fin Heat Sinks:
    • Pin fin heat sinks consist of an array of cylindrical pins extending from a base.
    • This design increases the surface area for improved cooling efficiency. Pin fin heat sinks are commonly used in high-density applications.
  7. Folded Fin Heat Sinks:
    • Folded fin heat sinks have fins that are folded from a single sheet of material, creating a three-dimensional structure.
    • This design enhances the surface area and improves heat dissipation in a compact form factor.
  8. Liquid Cooled Heat Sinks:
    • Liquid-cooled heat sinks use a combination of liquid cooling and traditional heat sink designs.
    • These heat sinks may have tubes or channels through which a cooling fluid (usually water or coolant) circulates, providing efficient heat removal.
  9. Heat Pipes:
    • Heat pipes are cylindrical tubes filled with a phase-change material that absorbs and transfers heat efficiently.
    • Heat pipes are often integrated into heat sink designs, enhancing heat transfer capabilities.
  10. Vapor Chamber Heat Sinks:
    • Vapor chamber heat sinks use a flat, sealed chamber filled with a working fluid. As the fluid evaporates and condenses, it efficiently transfers heat.
    • Vapor chamber heat sinks are particularly effective in applications with high-power components.
  • When selecting a heat sink for a PCB, it’s crucial to consider factors such as thermal conductivity, size, weight, cost, and the specific requirements of the electronic system.
  • Additionally, the thermal interface material (TIM) used between the heat sink and the component is essential for optimizing heat transfer.

Attachment Methods:

  • Heat sinks are typically attached to the surface of heat-generating components using thermal interface materials (TIMs) such as thermal paste or thermal pads.
  • These materials fill gaps between the component and the heat sink, improving thermal conductivity and heat transfer.

Design Considerations:

When designing a PCB with heat sinks, several factors must be considered:

  • Heat Sink Size and Shape: The size and shape of the heat sink should be optimized to maximize surface area for efficient heat dissipation.
  • Airflow: Adequate airflow around the heat sink is essential for effective heat transfer. PCB layouts should consider airflow patterns and may incorporate features such as ventilation holes or fans.
  • Thermal Interface: Proper selection and application of thermal interface materials are critical to ensure optimal thermal conductivity between the component and the heat sink.
  • Mounting Mechanism: The mounting mechanism should provide a secure attachment of the heat sink to the PCB while minimizing mechanical stress on the components.
  • Electrical Isolation: In some cases, electrical isolation may be required between the heat sink and the component to prevent short circuits or electrical interference.
Heat Sinks of PCB design
Heat Sinks of PCB design

Application Areas:

  • Heat sinks are commonly used in electronic devices and systems that require high-power components, such as:
    • Power supplies
    • Audio amplifiers
    • Graphics cards
    • Central processing units (CPUs) and other processors
    • Voltage regulators and power management ICs
  • Heat Pipe and Vapor Chamber Solutions:
  • In some high-performance applications, heat pipes or vapor chambers may be integrated into the heat sink design to enhance heat transfer efficiency further. These advanced solutions are particularly effective in applications with limited space or airflow.
  • Heat sinks play a crucial role in the thermal management and reliability of electronic systems, ensuring optimal performance and longevity of high-power components on PCBs.
  • Proper selection, design, and integration of heat sinks are essential considerations in PCB design for applications where heat dissipation is a concern.

Role of CFD Analysis for  PCB Design

  • CFD (Computational Fluid Dynamics) modeling is a powerful tool used in various engineering fields, including electronics cooling such as PCB (Printed Circuit Board) cooling.
  • The scope of CFD modeling for PCB cooling encompasses several aspects:

Heat Transfer Analysis:

    • CFD simulations allow engineers to analyze heat transfer within PCBs, components, and the surrounding environment.
    • By simulating fluid flow and heat transfer, engineers can determine temperature distributions, identify hotspots, and optimize cooling strategies.
PCB Heat transfer Mechanism
PCB Heat Transfer Mechanism

Component Placement and Design Optimization:

  • CFD modeling helps in evaluating different PCB layouts, component placements, and heat sink configurations.
  • Engineers can assess the effectiveness of various cooling solutions and optimize designs to enhance thermal performance.
PCB application
PCB application for CFD Modeling

Cooling System Design and Validation:

  • CFD simulations aid in the design and validation of cooling systems such as fans, heat sinks, liquid cooling loops, and thermal management techniques.
  • Engineers can analyze airflow patterns, pressure drops, and heat dissipation to ensure efficient cooling.



PCB circuit parts
PCB circuit parts

Thermal Management Strategies:

  • CFD modeling allows engineers to explore different thermal management strategies, including passive cooling (e.g., heat sinks, thermal pads) and active cooling (e.g., fans, liquid cooling).
  • By simulating thermal behavior under various operating conditions, engineers can select the most suitable cooling methods for specific PCB applications.

Prediction of Thermal Performance:

  • CFD simulations provide insights into the thermal performance of PCBs under real-world operating conditions.
  • Engineers can predict temperature gradients, airflow patterns, and thermal resistance to ensure that electronic components operate within safe temperature limits.

Failure Analysis and Reliability Assessment:

  • CFD modeling can assist in failure analysis and reliability assessment by identifying potential thermal issues that may lead to component degradation or failure over time.
  • By simulating worst-case scenarios and environmental conditions, engineers can improve the reliability and longevity of electronic systems.

Environmental Impact Assessment:

  • CFD simulations enable engineers to evaluate the environmental impact of PCB cooling systems, including energy consumption, noise generation, and thermal emissions.
  • This information can guide the development of eco-friendly and sustainable cooling solutions.
CFD Modeling of PCB cooling and applications
CFD Modeling of PCB cooling and applications

Heat Transfer Analysis of PCB

  • Heat transfer analysis of PCBs (Printed Circuit Boards) is crucial for ensuring the reliability and performance of electronic systems.
  • Here’s an overview of how heat transfer analysis is conducted for PCBs:

Modeling the PCB Geometry:

  1. The first step in heat transfer analysis is to create a detailed geometric model of the PCB layout, including components, traces, vias, and layers. CAD software is often used for this purpose, allowing engineers to accurately represent the physical dimensions and arrangement of the PCB.

Material Properties:

  • Assigning accurate material properties is essential for realistic simulations.
  • Different materials, such as FR-4 (a common PCB substrate material),
  • copper traces, solder joints, and components, have distinct thermal conductivities, densities, and
  • specific heat capacities that influence heat transfer within the PCB.

Boundary Conditions:

  • Boundary conditions define the external environment and operating conditions under which the PCB operates.
  • This includes ambient temperature, heat flux from components, airflow conditions, and any additional cooling mechanisms (such as heat sinks or fans) that dissipate heat from the system.

Heat Generation:

  1. Electronic components on the PCB generate heat during operation due to power dissipation. Heat sources can be modeled as volumetric or surface heat generation within the components based on their power ratings and thermal characteristics.
  2. Thermal Interfaces: Thermal interfaces, such as thermal paste or pads between components and heat sinks, play a critical role in heat transfer. Proper modeling of these interfaces is essential for accurately capturing thermal resistance and heat dissipation paths within the PCB assembly.
  3. Meshing: The PCB geometry is divided into discrete elements (mesh) to numerically solve the heat transfer equations. Mesh refinement is crucial to capture temperature gradients accurately and ensure convergence of the simulation results.
  4. Heat Transfer Mechanisms: Heat transfer within the PCB occurs through conduction, convection, and radiation mechanisms. Conduction transfers heat through solid materials, while convection involves heat exchange with surrounding fluids (air or liquid). Radiation occurs at high temperatures and is often negligible in typical PCB applications.
  5. Solver Selection:
    • Various numerical solvers, such as finite element method (FEM) or finite volume method (FVM), are employed to solve the heat transfer equations based on the meshed geometry and boundary conditions.

Analysis and Interpretation:

  1. Once the simulation is complete, engineers analyze the results to evaluate temperature distributions, identify hotspots, assess thermal performance, and optimize the PCB design or cooling strategy if necessary.
CFD Modeling of PCB cooling cover-final
CFD Modeling of PCB cooling cover-final

Validation:

  • Validation of the simulation results involves comparing predicted temperatures with experimental measurements or established thermal guidelines to ensure the accuracy and reliability of the heat transfer analysis.
  • By conducting comprehensive heat transfer analysis, engineers can optimize PCB designs, mitigate thermal issues, and improve the reliability and performance of electronic systems.

Steps in CFD modeling of PCB

  • Computational Fluid Dynamics (CFD) modeling of a Printed Circuit Board (PCB) involves several steps to simulate the fluid flow and heat transfer within and around the PCB.
  • By following the following steps, engineers can utilize CFD modeling to gain valuable insights into the thermal behavior of PCBs, optimize their designs, and ensure effective cooling strategies for electronic components.
  • Here is an overview of the typical steps involved in CFD modeling of PCB cooling:
  1. Geometry Creation:
    • Import or create a detailed 3D model of the PCB, including components, traces, and other features.
    • Represent the surrounding environment, including the enclosure and any cooling components.
  2. Mesh Generation:
    • Divide the geometric model into small elements (mesh) to numerically solve the fluid flow and heat transfer equations.
    • Ensure adequate mesh resolution in critical regions, such as near components or areas with expected high-temperature gradients.
  3. Material Properties Assignment:
    • Define material properties for different components and materials on the PCB, including thermal conductivity, density, and specific heat.
  4. Boundary Conditions:
    • Specify the boundary conditions for the simulation, including inlet and outlet conditions for airflow, initial temperatures, and any other relevant environmental factors.
    • Include heat sources representing power dissipation in electronic components.
  5. Fluid Flow Simulation:
    • Solve the fluid flow equations (Navier-Stokes equations) to simulate the airflow around and through the PCB.
    • Consider factors such as natural convection, forced convection, and turbulence depending on the application.

Heat Transfer Simulation

  • Solve the heat transfer equations to simulate the temperature distribution within the PCB.
  • Account for conduction, convection, and radiation heat transfer mechanisms.
  • Model heat sources from electronic components based on their power dissipation.

Solver and Numerical Methods:

  • Choose an appropriate CFD solver and numerical methods based on the nature of the problem, considering factors like steady-state or transient simulations, and the type of fluid flow (compressible or incompressible).

Post-Processing and Visualization:

  • Analyze the simulation results to extract relevant information such as temperature distributions, airflow patterns, and heat dissipation.
  • Visualize the results using contour plots, temperature profiles, or other appropriate visualization techniques.

Validation:

  • Compare simulation results with experimental data or analytical solutions to validate the accuracy of the model.
  • Adjust parameters or refine the model as needed based on the validation results.

Optimization:

  • Use the CFD model to perform parametric studies and optimization to improve the thermal performance of the PCB.
  • Explore different cooling strategies, component placements, or materials to achieve better heat dissipation.

Documentation and Reporting:

  • Document the modeling approach, assumptions, and simulation results.
  • Provide a comprehensive report detailing the findings, insights, and recommendations for design improvements.
 ANSYS ICEPAKCB Thermal Modleing
ANSYS ICEPAKCB Thermal Modleing

CFD Tools for PCB Thermal Modeling  ICEPAK

ANSYS FLUENT

  • FLUENT is  an advanced CFD solver for CFD and heat transfer modeling from the complex PCB models
  • ANSYS FLUENT is a multi-purpose solver for CFD simulations but is not user-friendly for non-CFD engineers
  • Its GUI is understood only by CFD trained people from mechanical, aerospace engineers
  • It needs more time for simulation set up and post-processing

Advantages of ANSYS ICEPAK

  • ANSYS Icepak offers several advantages when it comes to modeling and simulating the thermal behavior of printed circuit boards (PCBs):
  • Accurate Thermal Analysis:
    • ANSYS Icepak provides a robust and accurate thermal analysis of PCBs
  • Conjugate Heat Transfer:
    • Icepak supports conjugate heat transfer, allowing for the modeling of heat conduction within PCB materials, heat convection to the surrounding air, and radiation effects.
  • Detailed Component Modeling:
    • The software allows for detailed modeling of electronic components, including heat sources, heat sinks, and other thermal elements. This level of detail is crucial for an accurate representation of the PCB thermal behavior.
  • Transient Simulations:
    • ANSYS Icepak supports transient simulations, enabling the analysis of how the temperature distribution evolves over time.
    • This is especially important for understanding dynamic thermal behaviors in electronic systems.
  • Local Mesh Refinement:
    • Icepak allows for local mesh refinement, enabling users to focus computational resources on critical areas of interest, such as heat sources or regions with high thermal gradients.
  • User-Friendly Interface
  • Multi-physics Capabilities:
    • ANSYS Icepak is part of the ANSYS multiphysics simulation suite, allowing for coupled simulations with other physics such as structural, electromagnetic, and fluid flow simulations. T
    • his enables a more comprehensive understanding of the overall system behavior

DisAvantages of ANSYS ICEPAK

  • While ANSYS Icepak offers numerous advantages for modeling PCB thermal behavior, it also has some limitations and disadvantages:
  1. Cost and Licensing:
    • ANSYS Icepak is a commercial software package and can be expensive, especially for smaller organizations or individual users. Licensing costs and subscription fees may pose a barrier to adoption.
  2. Steep Learning Curve:
    • Like many simulation software tools, ANSYS Icepak has a steep learning curve, particularly for users who are new to computational fluid dynamics (CFD) and thermal analysis.
    • It requires time and effort to become proficient in setting up and interpreting simulations.
  3. Hardware Requirements:
    • Running complex simulations in ANSYS Icepak may require high-performance computing resources, including powerful processors and significant memory.
    • This can be a limitation for users with limited access to computational resources.
  4. Meshing Challenges:
    • Generating high-quality meshes for complex PCB geometries can be challenging and time-consuming.
    • Mesh generation is a critical step in CFD simulations, and improper meshing can lead to inaccurate results or convergence issues.
  5. Simplifications and Assumptions:
    • Like all simulation software, ANSYS Icepak relies on simplifications and assumptions to model complex physical phenomena.
    • Assumptions regarding material properties, boundary conditions, and geometry may introduce uncertainties in the simulation results.
  6. Limited Accuracy of Material Properties:
    • Obtaining accurate material properties for PCB materials and electronic components can be challenging. While ANSYS Icepak provides default material properties for common materials, these properties may not always reflect the actual behavior of real-world components.
  7. Limited Validation for Some Applications:
    • While ANSYS Icepak has been extensively validated for many thermal management applications, there may be specific use cases or boundary conditions where the software’s accuracy has not been thoroughly verified.
    • Users should exercise caution and validate their simulations against experimental data whenever possible.
  8. Modeling Assumptions for Convection and Radiation:
    • ANSYS Icepak uses simplified models for convection and radiation heat transfer. While these models are suitable for many applications, they may not accurately capture complex flow phenomena or radiation effects in certain scenarios.
  9. Difficulty in Modeling Non-Thermal Effects:
    • ANSYS Icepak primarily focuses on thermal analysis and may not easily incorporate non-thermal effects such as electromagnetic interference (EMI), signal integrity, or mechanical stresses.
    • Integrating these aspects may require additional simulation tools or post-processing steps.
  10. Support and Maintenance:
    • While ANSYS provides technical support and software updates for Icepak, users may encounter delays in receiving assistance or resolving issues, especially for complex technical problems or software bugs.



Conclusion

  • The scope of CFD modeling for PCB cooling is broad and encompasses various aspects of thermal analysis, design optimization, system validation, reliability assessment, and environmental considerations.
  • By leveraging CFD simulations, engineers can develop efficient and reliable cooling solutions to meet the thermal management requirements of modern electronic devices.
  • Understanding these advantages and limitations can help users make informed decisions about the suitability of ANSYS Icepak for their specific PCB thermal analysis needs and consider alternative approaches or complementary tools to address these challenges.

Leave a Comment
