Basics of Pumps and Its CFD Modeling

Basics of Flow Through Pumps

  • The flow through the pump is a fundamental aspect of fluid mechanics and engineering.
  • The flow through pumps is a complex yet essential aspect of fluid handling systems, and understanding it is key to designing efficient and reliable pumping systems for various applications.
  • Here are some key points about the flow through pumps:

Types of Flow

  • The flow through pumps can be classified into two main types: laminar flow and turbulent flow.
  • Laminar flow occurs at low velocities and is characterized by smooth, orderly layers of fluid.
  • Turbulent flow, on the other hand, is chaotic and occurs at higher velocities, with swirling eddies and mixing of fluid particles.
    Types of pumps based on flow directions
    Types of pumps based on flow directions

Flow Rate

  • The flow rate through a pump refers to the volume of fluid that passes through the pump per unit of time.
  • It is typically measured in units like liters per second (L/s) or cubic meters per hour (m³/h) and is a critical parameter in determining the pump’s capacity and performance.

Pressure Head:

  • Pressure head is the energy per unit weight of fluid due to its elevation or pressure.
  • In pumps, a pressure head is created by imparting energy to the fluid, which increases its pressure and allows it to overcome resistance in the system.
  • Pressure head is often measured in units like meters of fluid column (m) or pascals (Pa).

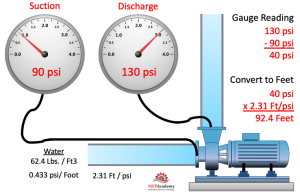

Reading-Pump-Pressure Gauges
Reading-Pump-Pressure Gauges

Pump Curves:

  • Pump performance is often represented by pump curves, which show the relationship between flow rate, pressure head, and pump efficiency.
  • These curves help in selecting the right pump for a given application and operating condition.

pump-curve-efficiency formula

Pumps Performance curve
Pumps Performance curve

Pump Efficiency

  • Pump efficiency curves are graphical representations that show how the efficiency of a pump changes with varying operating conditions, such as flow rate and head (pressure).
  • Here’s a breakdown of what these curves typically depict:
    •  X-Axis (Discharge or Flow Rate (Q):
      • This represents the volume of fluid passing through the pump per unit of time,
      • It is often measured in gallons per minute (GPM) or cubic meters per hour (m³/h).
    • Y-Axis (Pressure Head) :
      •  This shows the efficiency of the pump at different flow rates or operating points. with pressure head
      • Efficiency is usually expressed as a percentage and is a measure of how effectively the pump converts input power into useful work (lifting fluid).

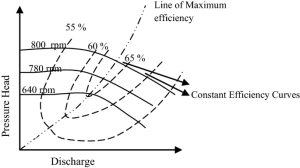

        Pump efficiency curve
        Pump efficiency curve
  • The pump efficiency curve itself is a plot that shows how the pump’s efficiency changes across its operating range.
  • It typically looks like a bell-shaped curve, with efficiency peaking at a certain flow rate or point.
  • This peak efficiency point is often referred to as the Best Efficiency Point (BEP).
  • Understanding these curves is crucial for selecting the right pump for a specific application.
  • Operating a pump close to its BEP generally results in higher efficiency and lower operating costs.
  • Operating too far from the BEP can lead to inefficiencies, increased energy consumption, and potential pump wear.
  • Additionally, pump efficiency curves can help engineers optimize system design by considering factors such as pipe sizing, control valves, and overall system resistance to ensure the pump operates at or near its BEP for optimal performance.
Pump sizing parameters
Pump sizing parameters

Flow Visualization

    • Engineers use various techniques, including Computational Fluid Dynamics (CFD) modeling, flow visualization experiments, and instrumentation such as flow meters, to study and understand the flow behavior through pumps.
    • This information is crucial for optimizing pump designs and ensuring reliable operation.

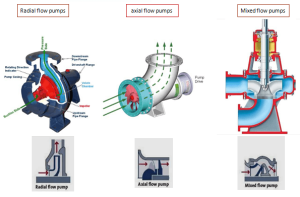

Types of pumps based on flow directions
Types of pumps based on flow directions

Water Pump

  • The water pump consists of a pump casing, an electric motor to run the impeller
  • Water is sucked at the inlet at low pressure and it exhausted with high velocity at the outlet



Water Pumps and its Parts
Water Pumps and its Parts

  • Parts of the Water pump are shown below
Parts iof Pumps
Parts of Pumps

Cavitation

  • Cavitation is a phenomenon that can occur in pumps when the local pressure drops below the vapor pressure of the fluid, leading to the formation of vapor bubbles.
  • Cavitation can damage pump components and reduce efficiency, so it’s important to design pumps to avoid or mitigate cavitation effects
  • Here are some key points about cavitation in pumps:
Pump caviation damage
Pump cavitation damage

Cause:

  • Cavitation in pumps typically occurs when the local fluid pressure drops below the vapor pressure of the liquid being pumped.
  • This can happen due to high velocities, sharp turns, or obstructions in the flow path, which create areas of low pressure.

Effects:

  • Reduced Efficiency: Cavitation can reduce the pump’s efficiency by disrupting the smooth flow of liquid and causing energy losses.
  • Increased Noise: The formation and collapse of vapor bubbles during cavitation can produce noise, often described as a rattling or hammering sound.
  • Mechanical Damage: The implosion of vapor bubbles can lead to erosion, pitting, and damage to pump components like impellers, casing, and bearings over time.

Prevention and Mitigation:

  • Proper Design: Engineers design pumps with features like streamlined flow paths, adequate inlet conditions, and materials resistant to cavitation damage.
  • Operating Conditions:
    • Maintaining proper operating conditions, such as avoiding excessive suction pressures or flow rates, can help prevent cavitation.
  • Monitoring: Regular monitoring of pump performance, including vibration analysis and pressure measurements, can detect early signs of cavitation for timely intervention.



Techniques:

    • Inducers: Adding inducers at the pump inlet can help increase the pressure and prevent cavitation.
    • Anti-Cavitation Devices: Some pumps have built-in anti-cavitation features, such as special coatings or flow control mechanisms, to reduce cavitation risk.
    • Addressing cavitation in pumps is crucial for maintaining optimal performance, reducing maintenance costs, and extending the lifespan of pump equipment.
Pump suction eye and discharge
Pump suction eye and discharge
Internal fluid Pressure Drop of Centrifugal Pump
Internal fluid Pressure Drop of Centrifugal Pump
  • Cavitation in pumps occurs when the pressure of the liquid being pumped drops below its vapor pressure, leading to the formation of vapor bubbles.
  • These bubbles can implode violently when they enter regions of higher pressure, causing damage to pump components and reducing efficiency.
  • Common causes of cavitation in pumps include high liquid velocity, inadequate inlet conditions, and sharp changes in flow direction.
  • To prevent cavitation in pumps, engineers often employ several strategies:
    1. Proper Pump Design: Designing pumps with appropriate impeller shapes, casing designs, and inlet configurations can help minimize cavitation risk.
    2. Operating Conditions: Ensuring that pumps operate within their specified pressure and flow rate limits can reduce the likelihood of cavitation. This includes maintaining adequate NPSH (Net Positive Suction Head) to avoid suction-side cavitation.
    3. Material Selection: Using materials resistant to cavitation damage, such as hardened alloys or coatings, can increase pump durability.
    4. Cavitation Detection: Monitoring pump performance for signs of cavitation, such as increased noise or vibration, allows for early detection and corrective action.
    5. Anti-Cavitation Measures: Installing inducers, using adjustable speed drives to control flow rates, and employing anti-cavitation valves or devices can mitigate cavitation effects.

By implementing these measures, engineers can minimize the risk of cavitation in pumps, improve operational reliability, and extend equipment lifespan.

Basic Parameters for Pump Design

  • Designing pumps involves several key steps and considerations:
    1. Identify Requirements: Understand the specific application requirements, including the desired flow rate, head, fluid properties, operating conditions, and system constraints.
    2. Select Pump Type: Choose the most suitable pump type based on the application, such as centrifugal pumps for high flow rates and moderate heads, positive displacement pumps for precise flow control, or specialty pumps for specific fluids or conditions.
    3. Sizing and Performance Calculation: Use engineering calculations to determine the required pump size, speed, power, and efficiency. Consider factors like system pressure, NPSH, fluid viscosity, and temperature to ensure optimal performance.
    4. Hydraulic Design: Design the pump’s hydraulic components, including impellers, casings, volutes, and chambers, to achieve the desired flow characteristics, pressure handling capabilities, and efficiency.
    5. Mechanical Design: Develop the pump’s mechanical components, such as shafts, bearings, seals, and housings, to withstand operating conditions, minimize vibration, and ensure reliability.
    6. Material Selection: Choose materials for pump components based on factors like fluid compatibility, corrosion resistance, abrasion resistance, and mechanical strength. Consider the environment, operating temperature, and maintenance requirements.
    7. Testing and Validation: Conduct performance testing and validation to verify the pump’s design, efficiency, and reliability under real-world conditions. Use test data to fine-tune the design and optimize performance.
    8. Safety and Compliance: Ensure that the pump design meets relevant safety standards, regulations, and industry guidelines. Consider factors like risk assessment, safety features, and environmental impact.

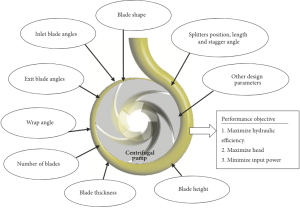

Pump Design Parameters
Pump Design Parameters
  • There are some basic parameters to consider when designing a pump:
  1. Flow Rate (Q):
    • This is the volume of fluid that the pump can move in a given time, typically measured in liters per minute (L/min) or gallons per minute (GPM).
  2. Head (H):
    • This refers to the height or pressure that the pump can lift the fluid to, often measured in meters (m) or feet (ft).
    • It determines the pump’s ability to overcome resistance in the system.
  3. Power (P):
    • This is the amount of energy the pump consumes to operate and is typically measured in watts (W) or horsepower (HP).
  4. Efficiency (η):
    • This parameter indicates how effectively the pump converts input power into hydraulic power.
    • It is expressed as a percentage.

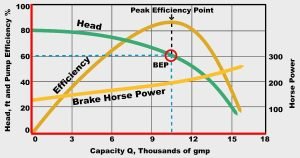

      Pump Performance Curve
      Pump Performance Curve
  5. Speed (N):
    • The rotational speed of the pump’s shaft, is usually measured in revolutions per minute (RPM).
    • It affects the pump’s performance and efficiency.
  6. Fluid Properties:
    • Consider the properties of the fluid being pumped, such as viscosity, temperature, density, and chemical compatibility.
    • These properties can influence pump selection and design.
  7. System Pressure:
    • The operating pressure of the system where the pump will be used.
    • It helps determine the required head and pump type (e.g., centrifugal, positive displacement).
  8. NPSH (Net Positive Suction Head):
    • This parameter ensures that the pump receives adequate fluid at the inlet to prevent cavitation.
    • NPSH is influenced by factors like fluid velocity, pipe design, and pump suction conditions.
    • Net Positive Suction Head (NPSH) is a critical parameter in pump design and operation, especially for centrifugal pumps.
      • It refers to the amount of absolute pressure available at the suction inlet of the pump, minus the vapor pressure of the fluid being pumped. I
      • n simpler terms, it measures the margin of pressure available to prevent the formation of vapor or cavitation within the pump.
    • NPSH is important because if the pressure at the pump’s suction inlet drops too low, it can cause the fluid to vaporize or form bubbles, leading to cavitation. Cavitation can damage pump components, reduce efficiency, increase noise, and decrease overall performance.
      1. NPSH Available (NPSHA):
        • This is the amount of pressure available at the suction inlet of the pump.
        • It includes the pressure from the system, atmospheric pressure, and any pressure boost from a pump located above the fluid level (positive suction head).
      2. NPSH Required (NPSHR): This is the minimum pressure required at the suction inlet to prevent cavitation. It is determined by the pump design and varies based on factors like pump speed, impeller design, fluid properties, and operating conditions.There are two main types of NPSH:
    • The NPSHA should always be greater than the NPSHR to ensure that the pump operates effectively without cavitation.
    • Engineers calculate NPSH values during pump design and specify NPSH requirements in pump datasheets to guide users in selecting suitable pumps and maintaining proper operating conditions.
  9. Pump Type:
    • Choose between centrifugal pumps, positive displacement pumps, diaphragm pumps, etc., based on the application requirements and fluid characteristics.

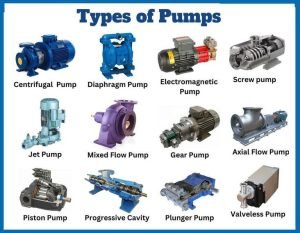

      Types of Pumps
      Types of Pumps
  10. Material Selection: Select pump materials compatible with the fluid properties and environmental conditions (e.g., corrosion resistance, temperature tolerance).

These parameters provide a foundation for pump design and selection. Engineers often use performance

Scope of CFD Modeling for Pump Analysis

CFD modeling plays a crucial role in understanding and optimizing the performance of pumps. Here’s the scope of CFD modeling for pumps:

Flow Analysis:

  • CFD can simulate fluid flow inside pumps, providing insights into flow patterns, velocities, pressure distributions, and areas of potential cavitation or recirculation.
  • This helps in optimizing pump design for efficient and stable operation.
  • CFD Results
    • Pressure contours
    • Velocity contours
    • Flow streamlines
    • Cavitation analysis
    • Interaction effects in different components
    • Prediction of axial thrust
    • Parametric study
    • Diffuser pump analysis
    • Performance of pump running in turbine mode

Efficiency Improvement:

    • CFD allows engineers to analyze pump performance under various operating conditions, such as different flow rates or speeds.
    • By optimizing pump geometry and impeller design based on CFD simulations, manufacturers can enhance pump efficiency and reduce energy consumption.

Cavitation Prediction:

    • CFD modeling can predict cavitation phenomena, which occur when local pressure drops below the vapor pressure of the fluid, leading to the formation of vapor bubbles and potential damage to pump components.
    • Understanding cavitation through CFD helps in designing pumps to mitigate its effects.

Heat Transfer Analysis:

    • In applications where pumps handle fluids with significant temperature differences
    • CFD can analyze heat transfer within the pump and optimize cooling strategies to prevent overheating and maintain performance.

Multi-phase Flow Modeling:

  • Some pumps handle multiphase fluids, such as slurries or emulsions.
  • CFD can model multiphase flow behavior, including phase distribution, mixing, and separation, aiding in designing pumps suitable for such applications.

Transient Analysis:

  • CFD simulations can simulate transient conditions, such as startup, shutdown, and sudden changes in operating parameters. This helps in assessing pump performance and behavior under dynamic scenarios.

Design Optimization:

    • By coupling CFD with optimization algorithms, engineers can perform parametric studies to find the most efficient pump design based on performance criteria, such as pressure head, flow rate, and energy consumption.

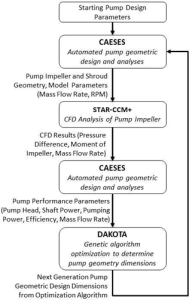

Scope of CFD for Pump Design
Scope of CFD for Pump Design

CFD analysis to find pump efficiency

  • CFD analysis can be used effectively to find pump efficiency by simulating the fluid flow inside the pump and analyzing various performance parameters.
  • Here’s how CFD can be applied to determine pump efficiency:
  1. Geometry and Meshing: The first step is to create a detailed 3D model of the pump geometry, including the impeller, volute, casing, and other components. This model is then meshed to discretize the fluid domain into small elements, which is crucial for accurate simulation results.
  2. Boundary Conditions: Define the boundary conditions for the CFD simulation, including inlet velocity, pressure at the outlet, and any additional constraints such as rotational speed or heat transfer considerations. These conditions should represent the actual operating conditions of the pump.
  3. Fluid Flow Simulation: Use CFD software to simulate the fluid flow through the pump. The software solves the Navier-Stokes equations to calculate parameters such as velocity, pressure, turbulence, and heat transfer within the pump.
  4. Efficiency Calculation:
    • Once the simulation is complete, calculate the pump efficiency using the following formula:
                                Efficiency (%)=Power Output/Power Input×100
    • Power Output:
      • Calculate the power output of the pump by multiplying the fluid density (𝜌), the flow rate (𝑄), and the pressure rise (Δ𝑃) across the pump:
          Power Output=𝜌×𝑄×Δ𝑃
    • Power Input: The power input to the pump can be calculated based on the pump’s rotational speed (𝑁) and torque (𝜏) using the formula:
      Power Input=2𝜋×𝑁×𝜏
  5. Post-Processing:
    • Analyze the CFD results to visualize flow patterns, pressure distributions, velocity contours, and areas of potential cavitation or recirculation.
    • This helps in identifying areas where improvements can be made to enhance pump efficiency.
  6. Optimization:
    • Based on the CFD analysis and efficiency calculations, engineers can optimize pump designs by adjusting parameters such as impeller geometry, blade angles, volute shape, and inlet/outlet configurations to improve overall pump performance and efficiency.
  • By leveraging CFD analysis, engineers can gain valuable insights into pump behavior, optimize design parameters, and ultimately enhance pump efficiency for various applications.
Basics of Pumps and its CFD Modeling
Basics of Pumps and its CFD Modeling

Summary

  • Overall, CFD modeling for pumps offers a comprehensive approach to analyze, optimize, and validate pump designs, leading to improved performance, reliability, and energy efficiency.
