Role of Tensors, Scalars and Vectors in Flow Analysis

Importance of Vectors in Physics

  • Vectorial analysis, also known as vector analysis, is a mathematical framework used in physics and engineering to analyze and describe physical quantities with both magnitude and direction.
  • It involves the use of vectors, which are mathematical entities that have both magnitude and direction.
  • Here are some key roles and applications of vectorial analysis:

Representation of Physical Quantities:

  • Vectors are used to represent physical quantities that have both magnitude and direction, such as force, velocity, acceleration, and electric fields.
  • By using vectors, these quantities can be conveniently expressed and manipulated mathematically.

Vector Operations:

    • The vectorial analysis involves various operations on vectors, such as addition, subtraction, scalar multiplication, and dot product.
    • These operations are essential for performing calculations and solving problems related to physical systems.
Continuity or mass conservation equation



Vector Fields:

  • In flow analysis, vector fields are used to represent the distribution of various quantities, such as velocity, pressure, and vorticity, throughout the fluid domain.
  • Vector fields provide a comprehensive view of how these quantities vary across different spatial locations, aiding in the characterization of the flow behavior.

Vorticity Vectors:

  • Vorticity is a measure of the local rotation of fluid elements.
  • Vorticity vectors represent the axis and magnitude of rotation at a given point in the flow.
  • Understanding vorticity is important for studying the development of turbulence and swirl in fluid flows.
vorticity transport_equation_curl_flow
Vorticity Transport equation curl flow
Curl of velocity vector
The curl of velocity vector

Divergence and Curl

  •  These vector operations are used to analyze the behavior of vector fields in fluid dynamics.
  • Divergence is related to the expansion or compression of fluid elements, while curl represents the rotation or circulation of fluid.
  • These concepts are valuable for understanding the sources and sinks within a flow field
Convergence and Divergence based on curl of velocity
Convergence and Divergence based on the curl of the velocity

Force and Motion Analysis:

    • In mechanics, vectorial analysis is crucial for analyzing forces and motions.
    • For example, Newton’s laws of motion can be expressed and solved using vector notation, allowing for a comprehensive understanding of how objects move and interact with each other.
Role of Gradient Vectors in Fluid Mechanics

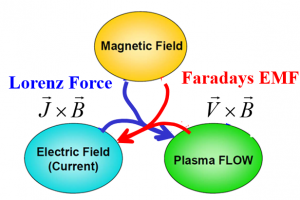

Electromagnetic Field Analysis:

    • Vector analysis is widely used in the study of electromagnetic fields.
    • Maxwell’s equations, which describe the behavior of electric and magnetic fields, are formulated using vector calculus.
    • This is fundamental in understanding and designing electrical circuits and devices.

Fluid Dynamics:

  • In fluid dynamics, vectors are used to describe fluid flow, velocity fields, and forces acting on fluids.
  • Vector calculus helps in formulating equations that govern fluid behavior, facilitating the analysis of fluid systems.
  • Optics and Wave Analysis: Vectorial analysis is employed in the study of optics and wave phenomena. Light waves, for example, can be represented as vectors, and vector calculus helps in understanding the behavior of light as it interacts with different mediums.

Engineering Applications:

  • Vectorial analysis is extensively used in engineering disciplines, including civil, mechanical, and electrical engineering.
  • It plays a crucial role in structural analysis, control systems, signal processing, and various other engineering applications.

Mathematical Formulation:

  • Vector calculus provides a concise and powerful mathematical framework for formulating physical laws and equations.
  • This facilitates the development of models like OpenFOAM and solutions for a wide range of scientific and engineering problems.

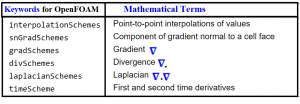

Role of Gradient in fluid mechanics and openfoam
Role of Gradient in Fluid Mechanics and OpenFOAM

Role of  Tensors in Flow Analysis

  • Tensors play a crucial role in flow analysis, particularly in fluid mechanics and continuum mechanics.
  • Here’s how tensors are used and why they are important in analyzing flows:

Description of Flow Fields:

    • Flow fields, such as velocity, stress, and strain fields in fluids, are typically described by tensors.
    • For instance, the velocity field of a fluid is represented by a vector field, while the stress and strain fields are represented by second-order tensors.

Conservation Laws:

  • Tensors help formulate the conservation laws governing fluid flows, such as the conservation of mass, momentum, and energy.
  • These laws are often expressed in terms of tensor equations, such as the Navier-Stokes equations, which describe the motion of viscous fluid substances.
Conservation of momentum equarton for fluid flow
Conservation of Momentum Equation for fluid flow

Stress Analysis:

  • In fluid mechanics, tensors are used to describe stress distributions within fluids.
  • Understanding stress tensors is crucial for analyzing fluid behavior under different conditions, including flow around obstacles, through channels, or in boundary layers.
Shear stress tensor - second order tensor in fluid dynamics
Shear stress tensor – second order tensor in fluid dynamics

Strain Analysis:

  • Tensors are also used to describe strain, which is a measure of deformation in the flow field.
  • Strain tensors help quantify changes in fluid properties due to flow, such as stretching, shearing, or compression.

Tensorial Form of Equations:

  • Many fundamental equations governing fluid flow are expressed in tensorial form.
  • For example, the Navier-Stokes equations, which describe the motion of viscous fluids, involve tensors representing velocity gradients, stress, and pressure terms.

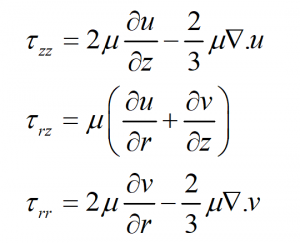

shear stress in momentum equation
shear stress in the momentum equation

Boundary Conditions

  •  Tensors are essential for defining boundary conditions in flow analysis.
  • These conditions specify how the flow behaves at the boundaries of a domain and are often expressed using tensor quantities such as velocities, stresses, and gradients.

Numerical Simulation:

  • In computational fluid dynamics (CFD),  tensors play a vital role in numerical simulations of flow phenomena.
  • CFD algorithms discretize the governing equations into finite difference, finite volume, or finite element methods, which involve manipulation and computation with tensor quantities.
OpenFOAM_meaning_CFE
OpenFOAM meaning in CFD Modeling

Material Properties

  • Tensors are used to describe material properties of fluids, such as viscosity and density tensors, which can vary spatially and temporally in complex flows.

Summary

  • Tensors are indispensable tools for analyzing fluid flows because they provide a rigorous mathematical framework for describing flow fields, formulating conservation laws, analyzing stresses and strains, and simulating fluid behavior under various conditions.
  • Their use enables engineers and scientists to model, analyze, and predict the behavior of fluid flows in diverse applications ranging from aerospace and automotive engineering to environmental and biomedical sciences.
  • Vectorial analysis is a fundamental tool in the study of physical systems, providing a mathematical language to describe, analyze, and solve problems related to forces, motions, fields, and waves in various scientific and engineering disciplines.
